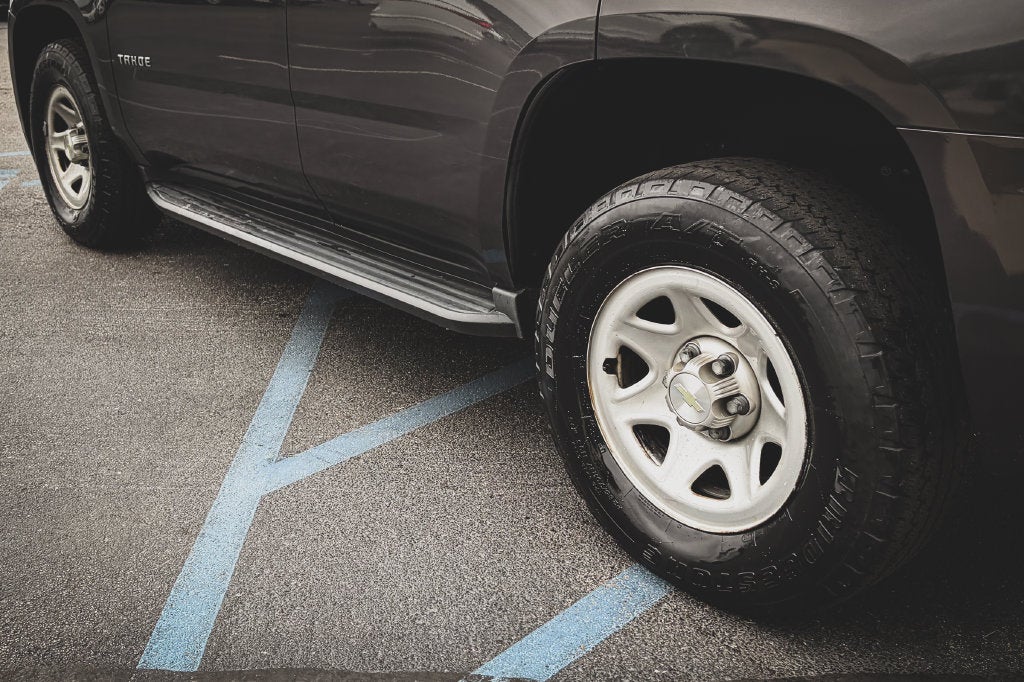

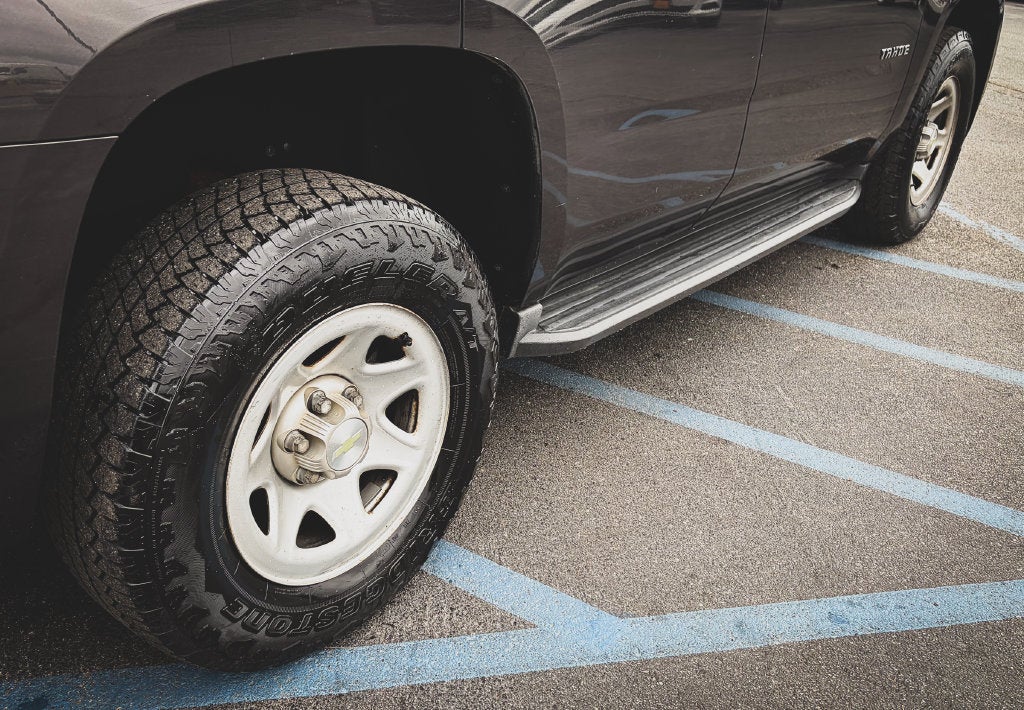

• Wheels, 17" x 8" (43.2 cm x 20.3 cm) painted steel With (9C1) Police Vehicle or (5W4) Special Service Vehicle, includes Silver with center caps. (Not included when (NHT) Max Trailering Package is ordered.)
• Tires, P265/70R17 all-terrain, blackwall (Not included when (NHT) Max Trailering Package is ordered.)
• Tire, spare P265/70R17 all-season, blackwall
• Wheel, full-size spare, 17" (43.2 cm) steel
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Active aero shutters, front
• Fascia, front body-color (With (9C1) Police Vehicle or (5W4) Special Service Vehicle, includes recovery hook openings, but does not include hooks.)
• Fascia, rear body-color
• Assist steps, Black (Premier includes chrome accent strip) (Deleted when (RVQ) Assist step kit, Black, LPO or (VXH) Assist step kit, Chrome, LPO are ordered.)

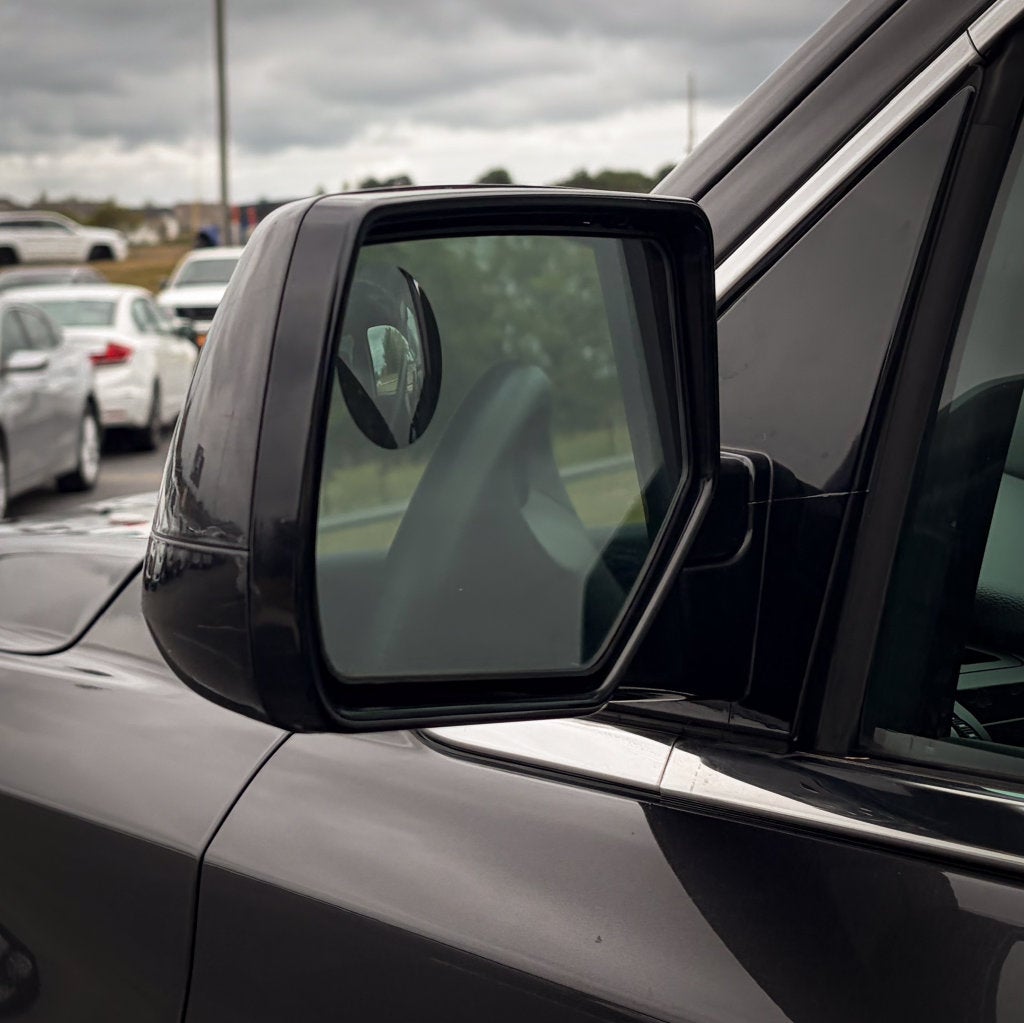

• Mirrors, outside heated power-adjustable, manual-folding and color keyed driver mirror includes spotter mirror
• Glass, deep-tinted (With (9C1) Police Vehicle or (5W4) Special Service Vehicle includes all windows, except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wipers, front intermittent, Rainsense
• Wiper, rear intermittent with washer
• Liftgate, rear manual

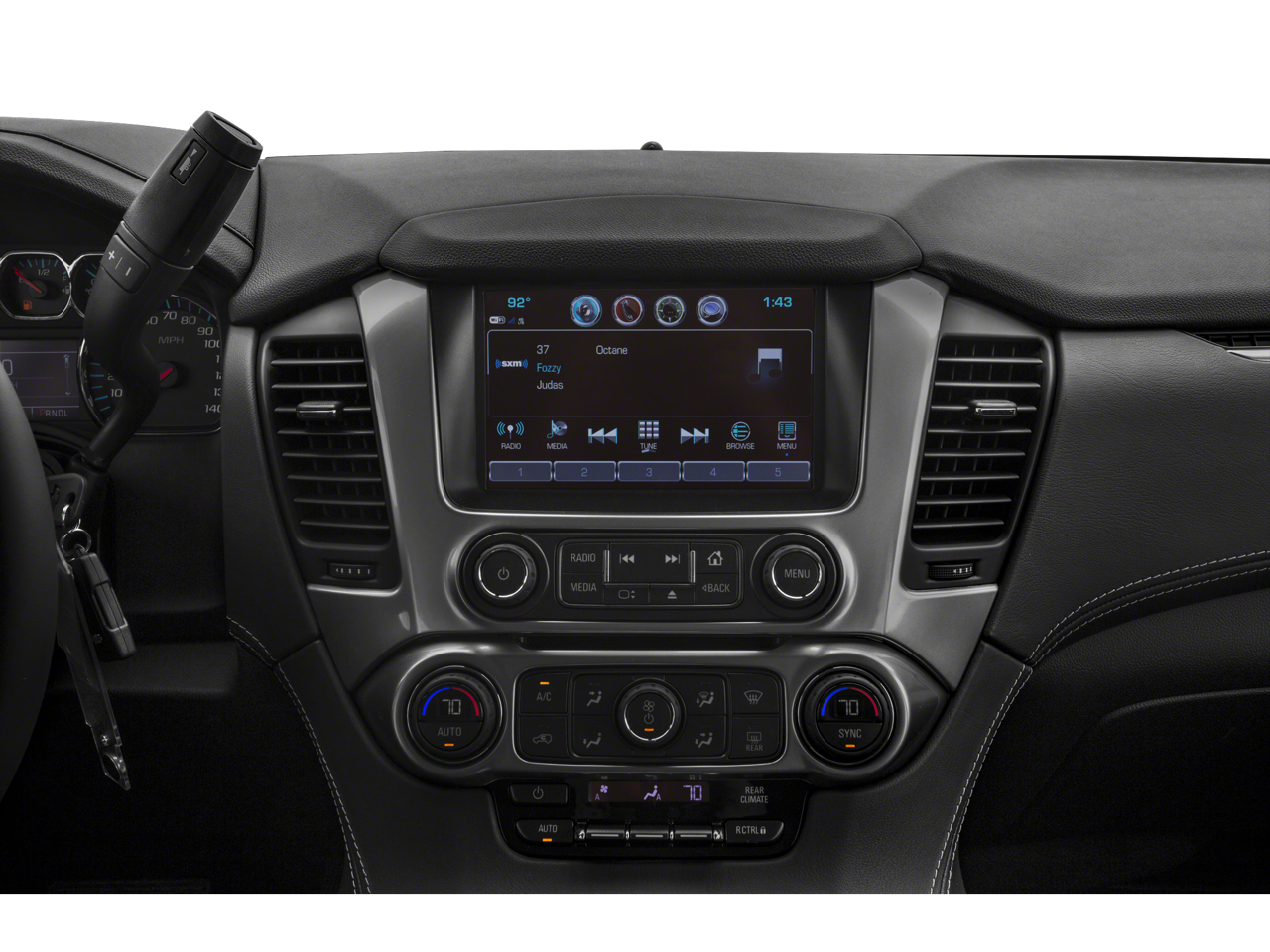

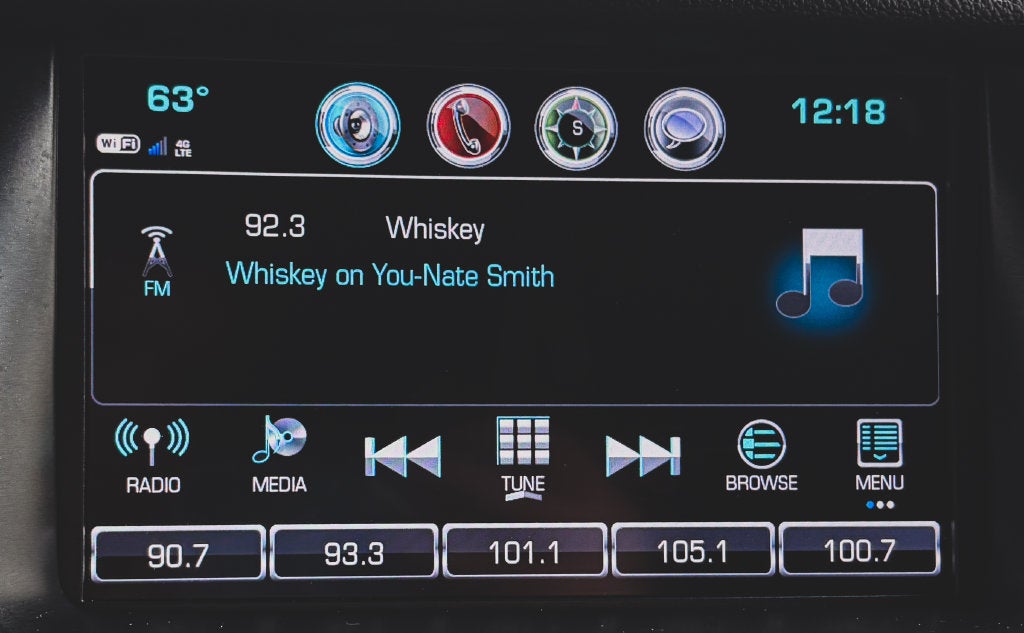

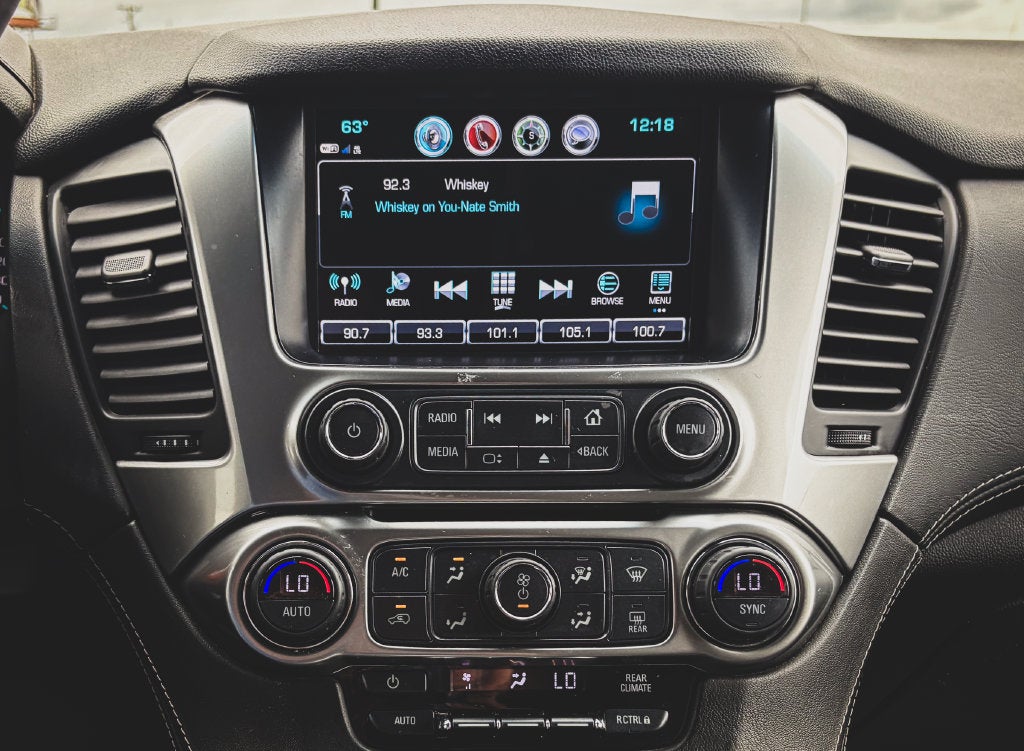

• Audio system, Chevrolet MyLink Radio with 8" diagonal color touch-screen AM/FM stereo with seek-and-scan and digital clock, includes Bluetooth® streaming audio for music and select phones; voice-activated technology for radio and phone; and Shop with the ability to browse, select and install apps to your vehicle. You can customize your content with audio, weather and more; featuring Apple CarPlay and Android Auto capability for compatible phone; 5 USB ports and 1 auxiliary jack
• Audio system feature, single-slot CD/MP3 player
• Audio system feature, 6-speaker system
• SiriusXM Satellite Radio, delete

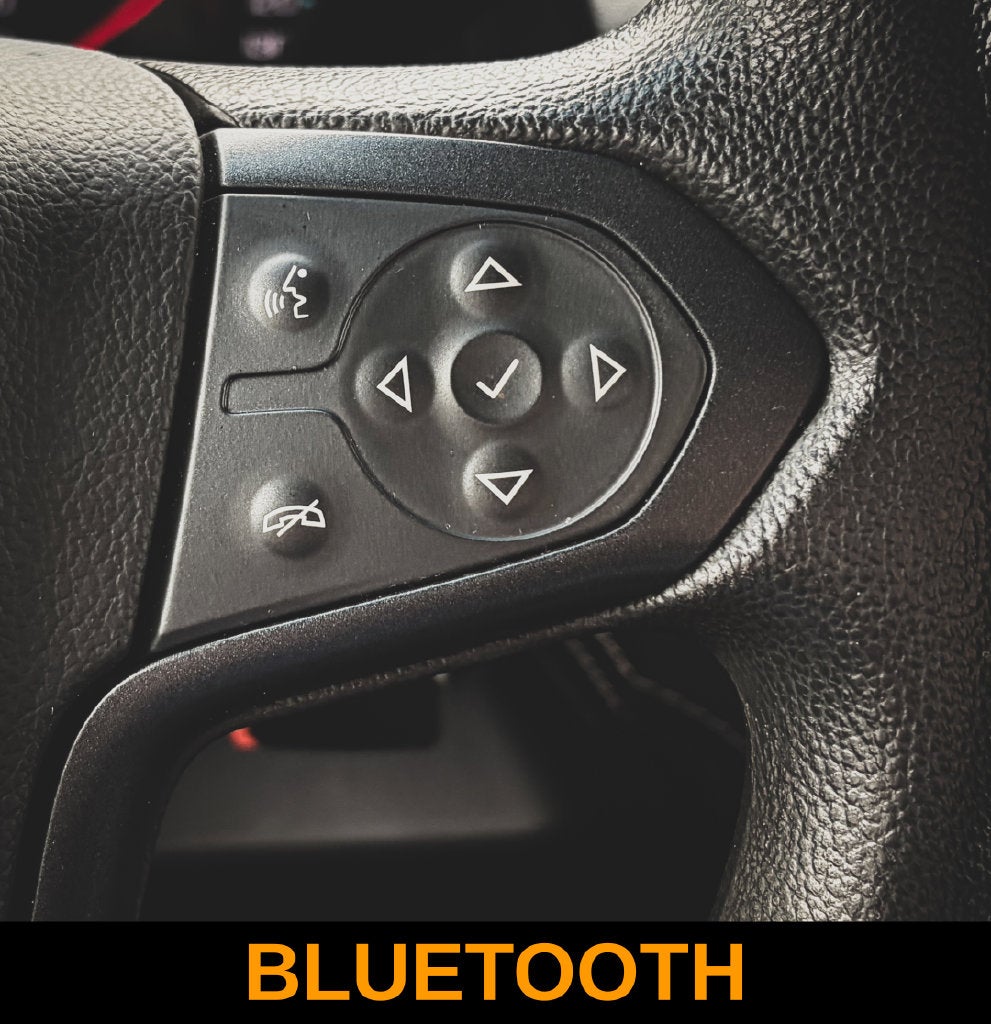

• Bluetooth® for phone personal cell phone connectivity to vehicle audio system
• Chevrolet 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 1 month or 3GB (whichever comes first); EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018. (Requires (UE1) OnStar. Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)

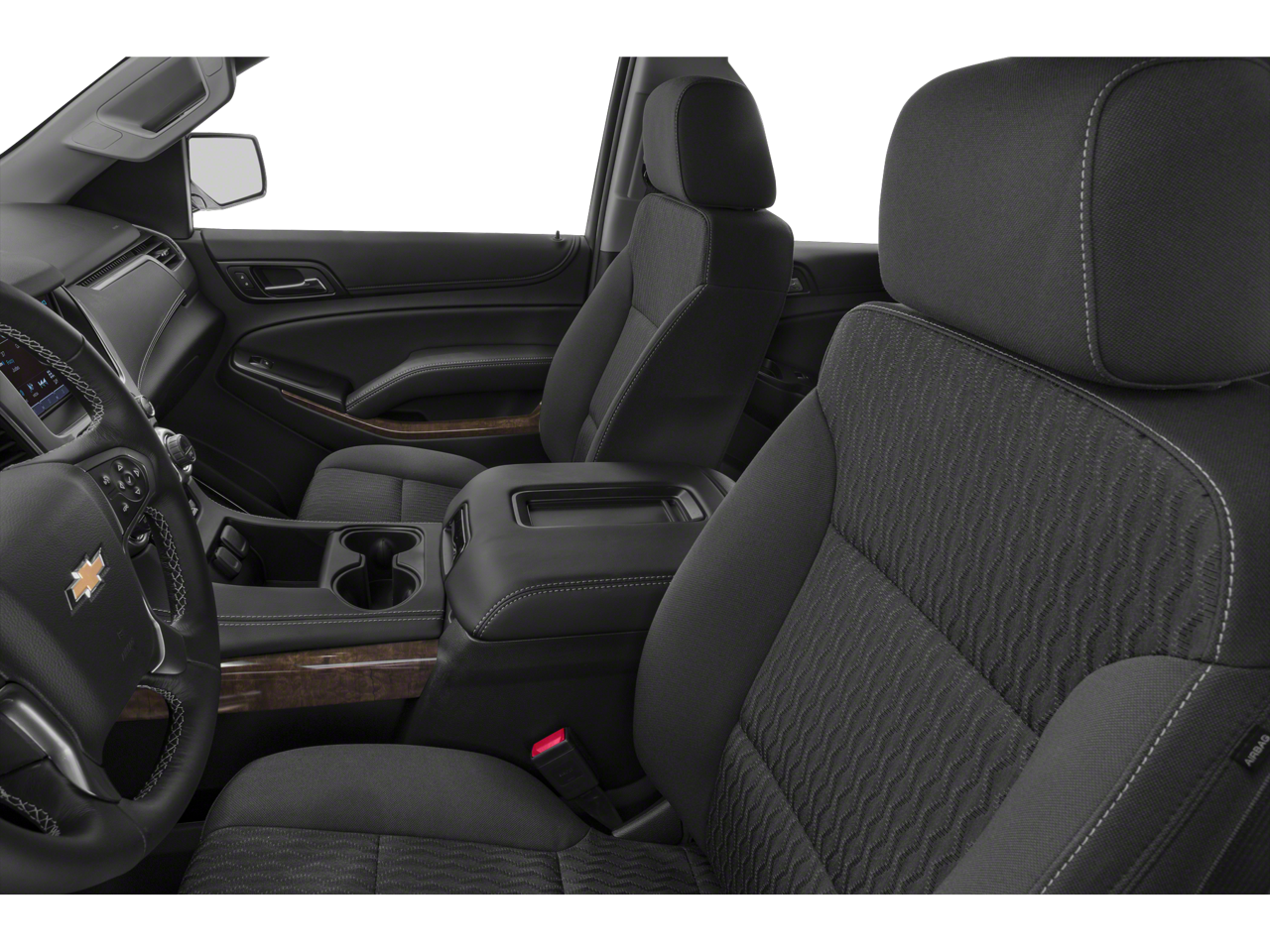

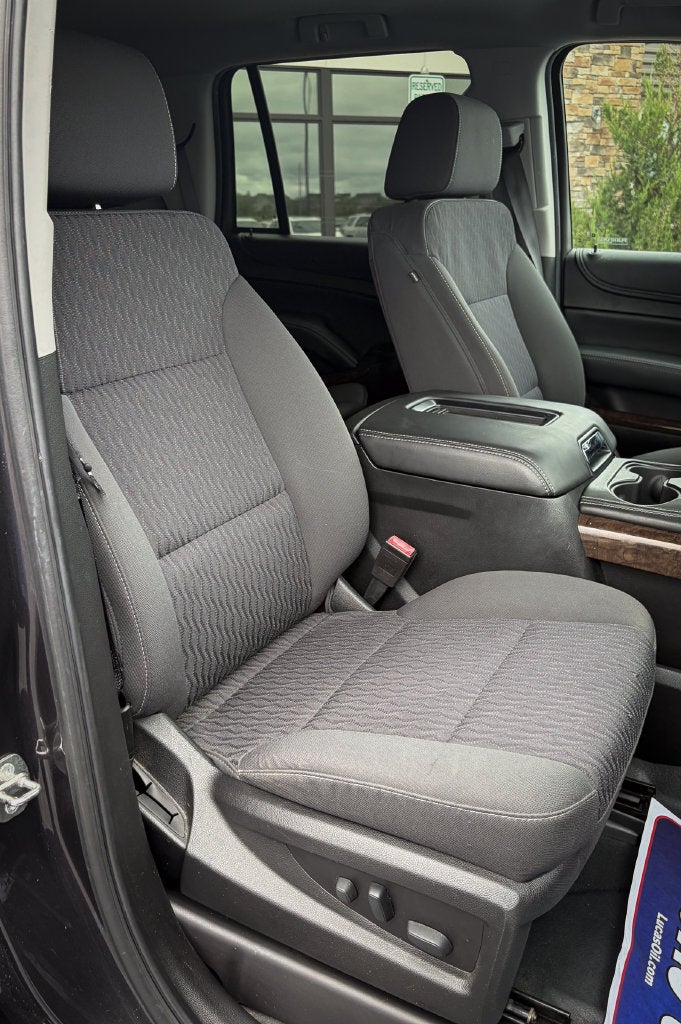

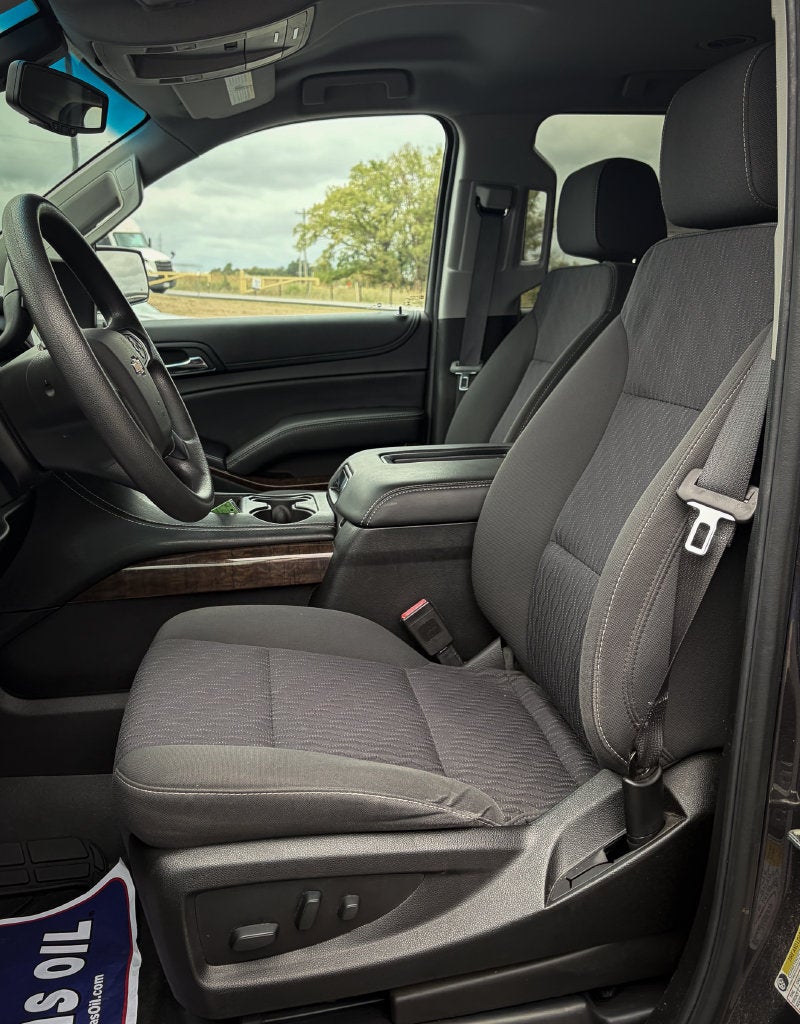

• Seating, front 40/20/40 split-bench, 3-passenger includes 6-way power driver and 2 way front passenger seat adjuster, driver and front passenger power lumbar control and power reclining, center fold-down armrest with storage (includes auxiliary power outlet, USB port and input jack for audio system), storage compartments in seat cushion, adjustable outboard head restraints and storage pockets (When (H2G) Jet Black vinyl interior trim is ordered, seats will be manual not power.)
• Seat trim, cloth
• Seat adjuster, front passenger 6-way power

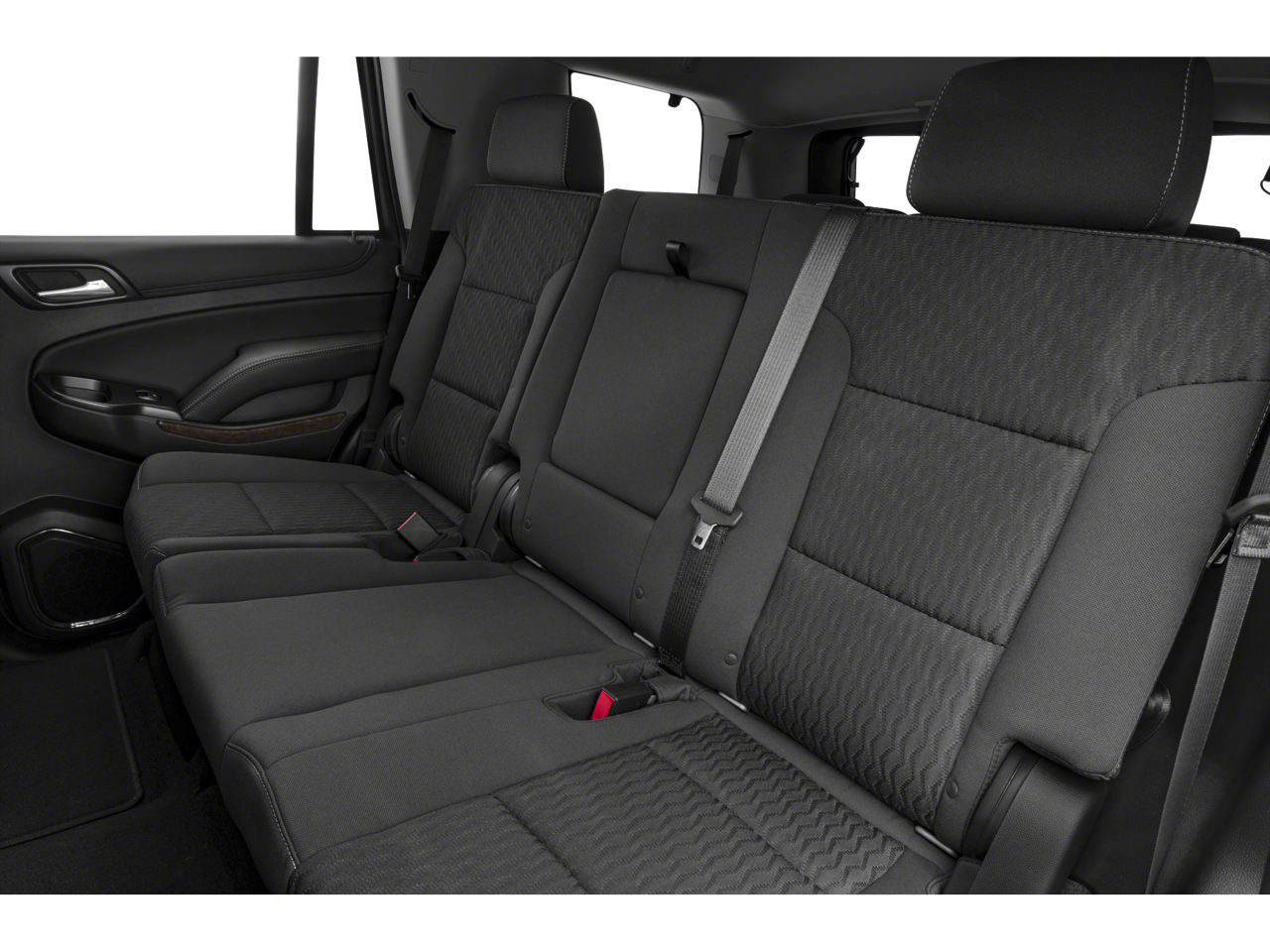

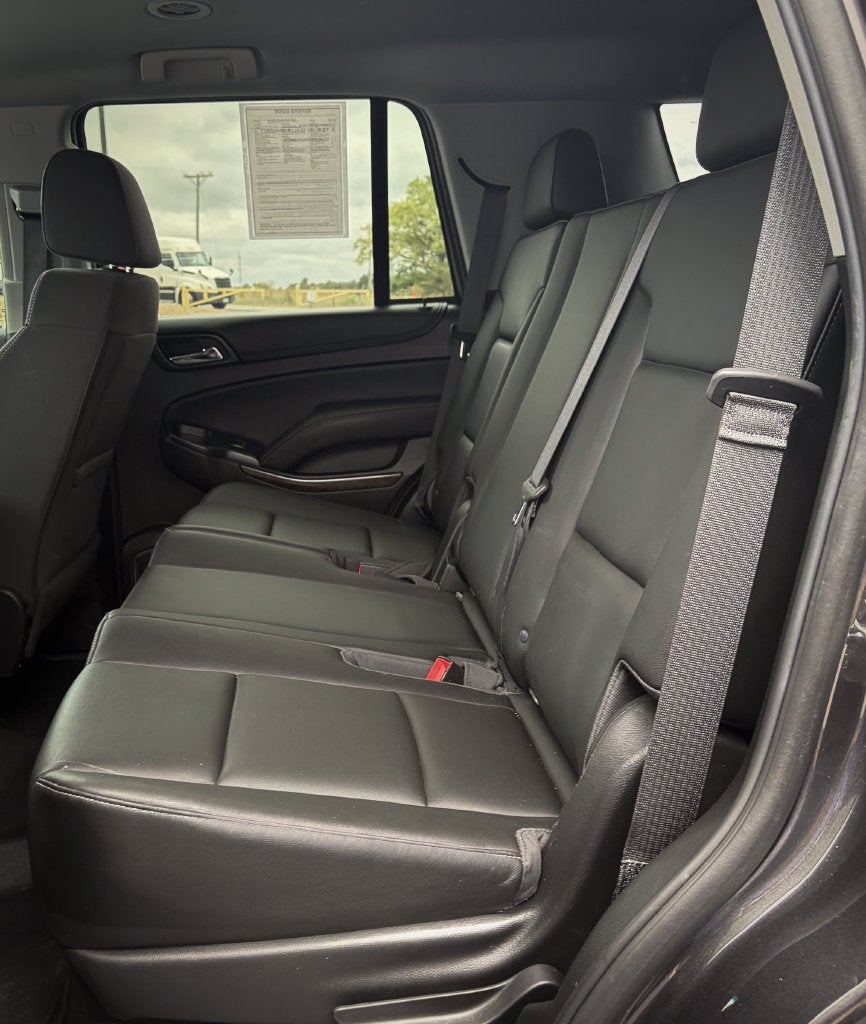

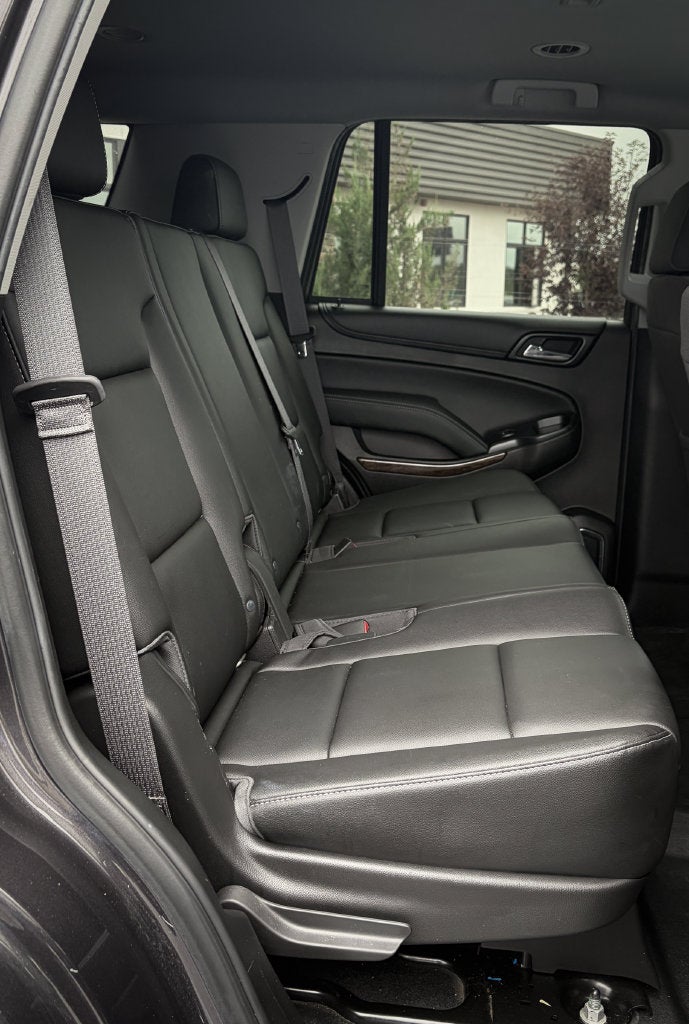

• Seats, second row 60/40 split-folding bench, manual
• Seat, third row manual 60/40 split-folding bench, fold flat
• Floor covering, Black rubberized-vinyl

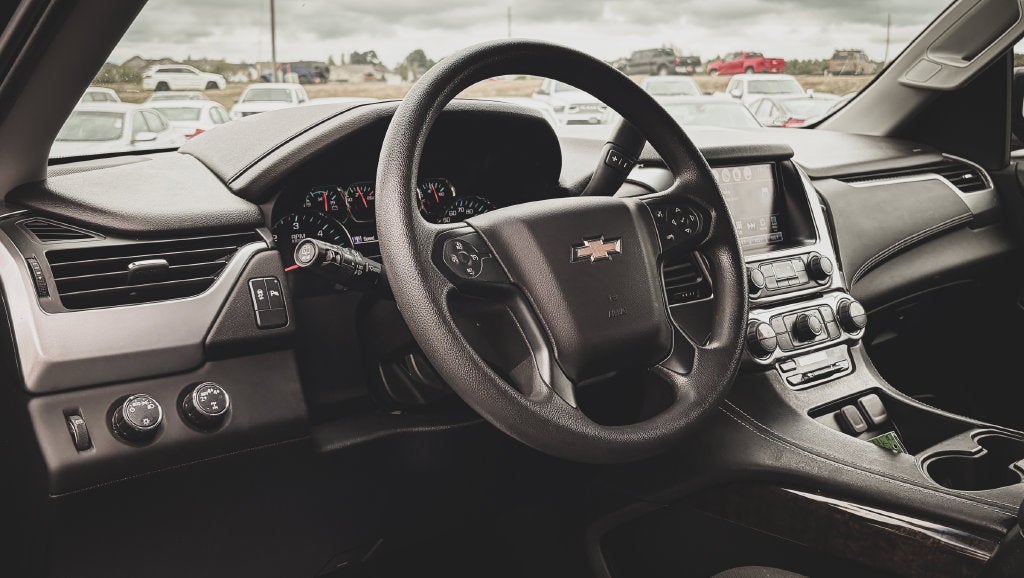

• Steering column, Tilt-Wheel
• Steering wheel, urethane

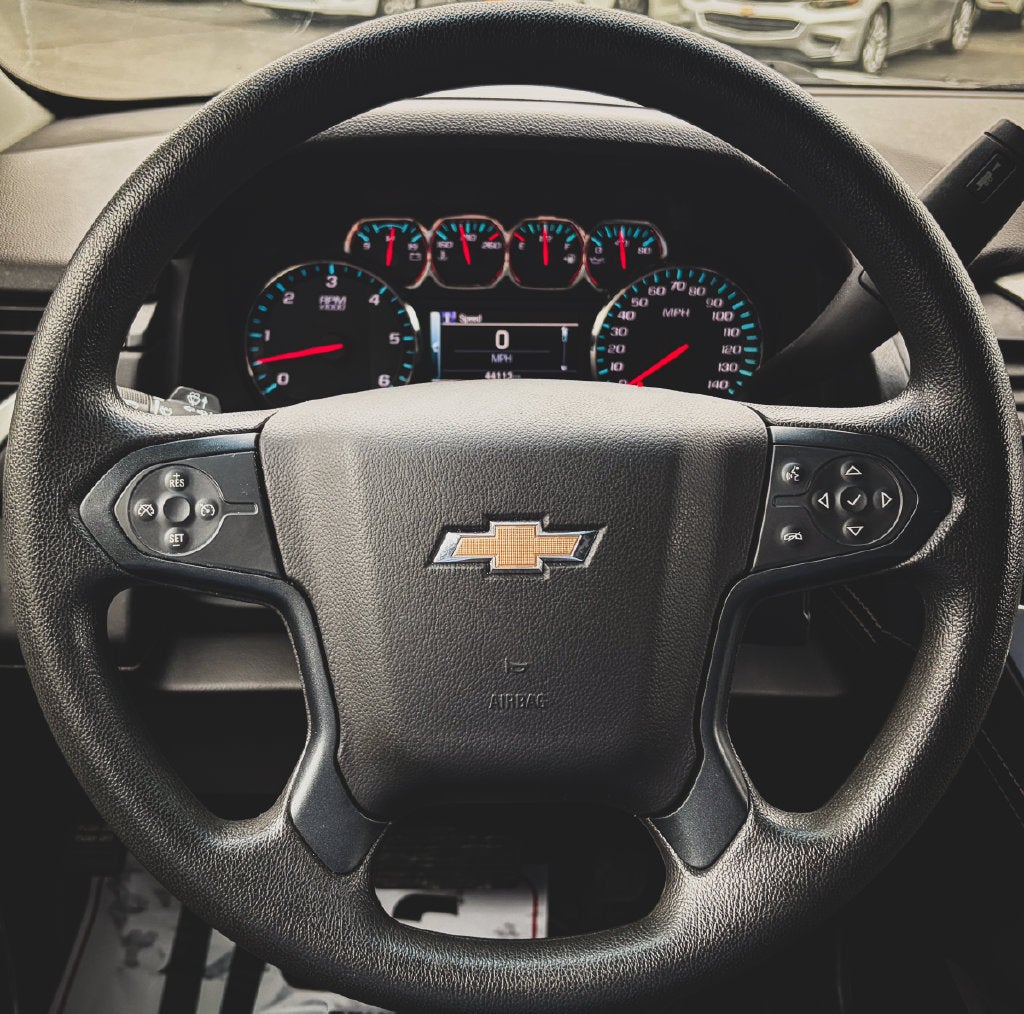

• Steering wheel controls, mounted audio and cruise controls includes Driver Information Center controls

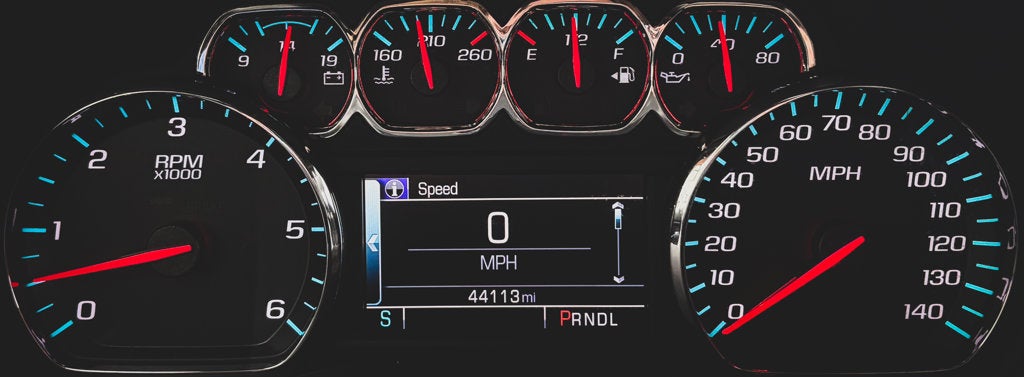

• Driver Information Center, 4.2" diagonal multi-color
• Warning tones headlamp on, key-in-ignition, driver and right-front passenger seat belt unfasten and turn signal on
• Door locks, power programmable with lockout protection and delayed locking (With (9C1) Police Vehicle or (5W4) Special Service Vehicle, Auto Lockout is disabled on Driver door.)

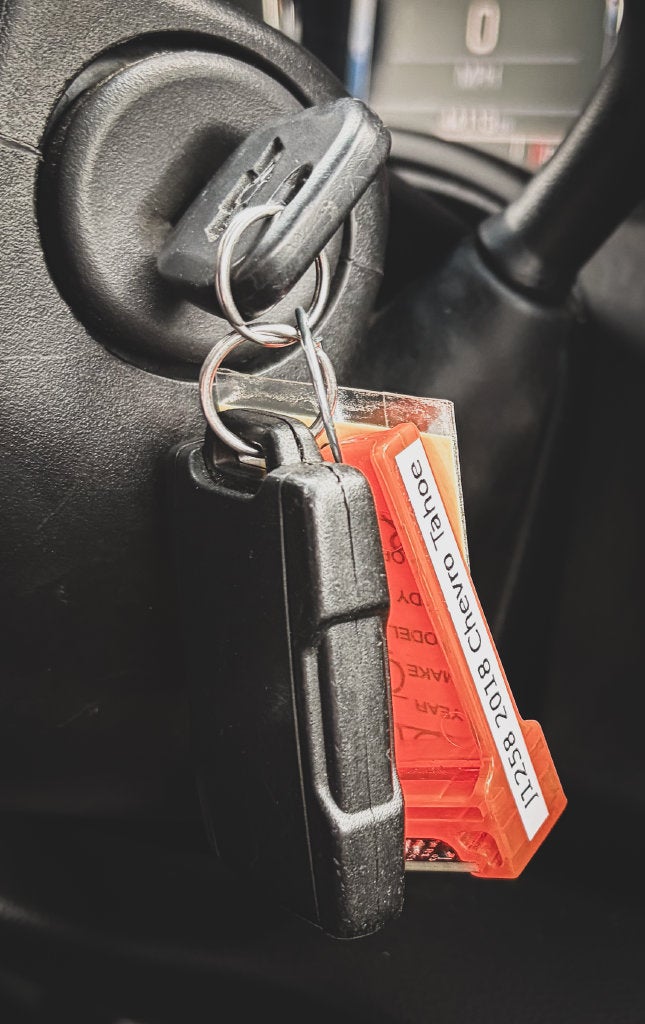

• Remote Keyless Entry, extended-range

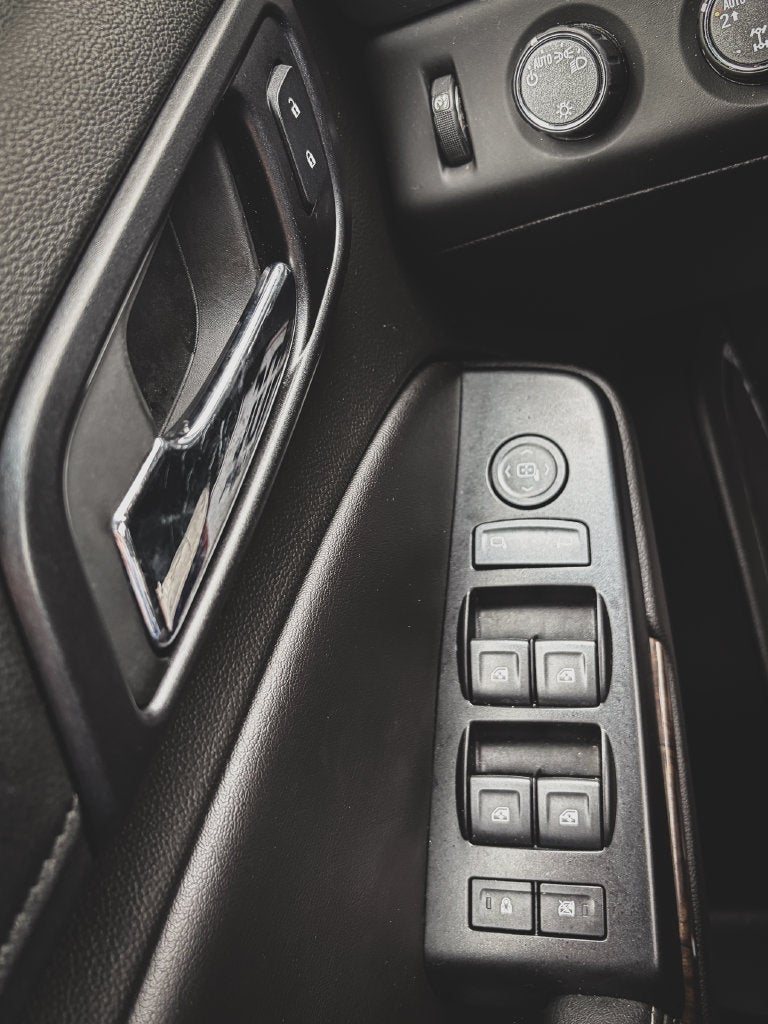

• Windows, power, with Express-Down and Express-Up on front doors and lock out features

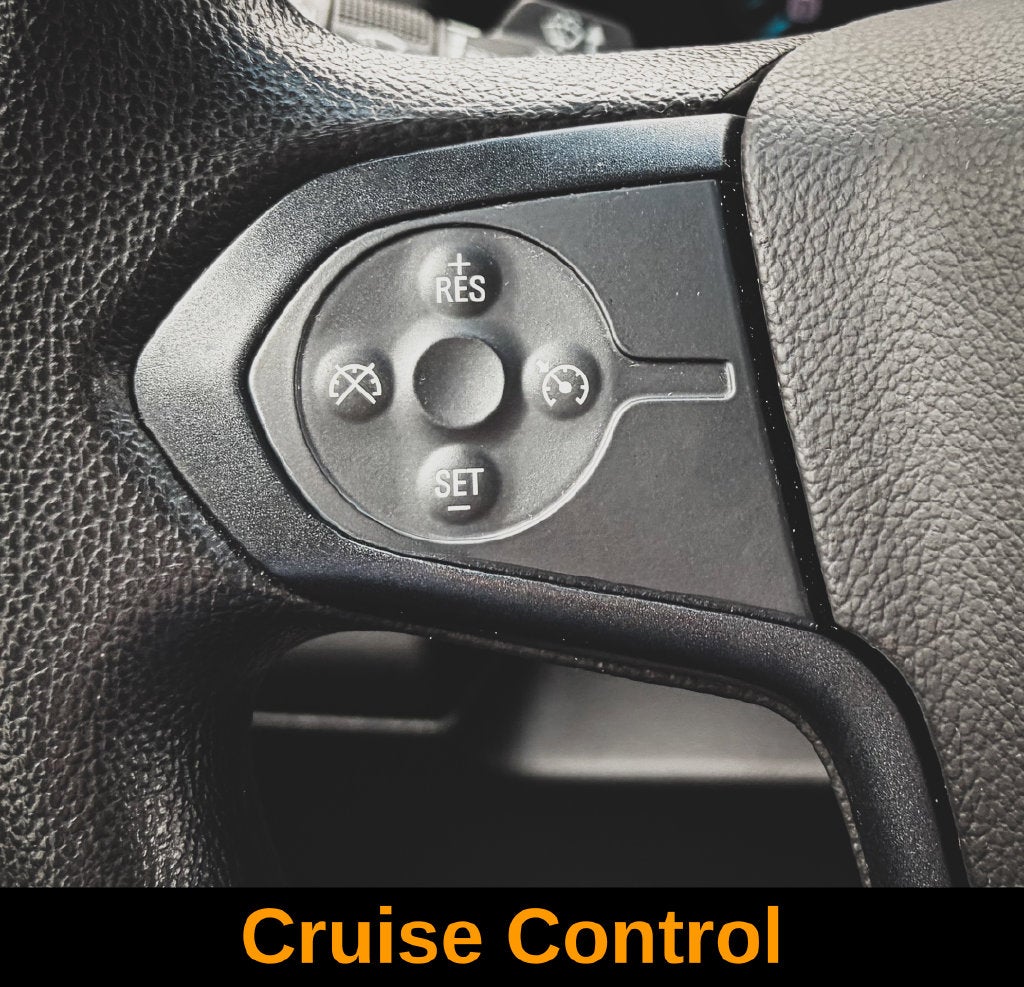

• Cruise control, electronic with set and resume speed

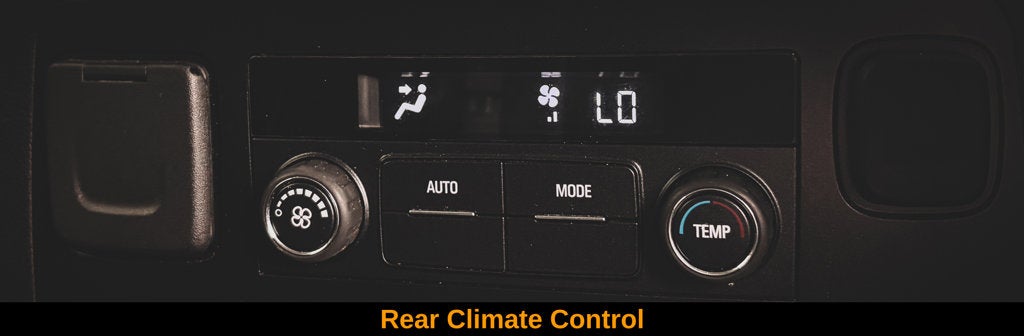

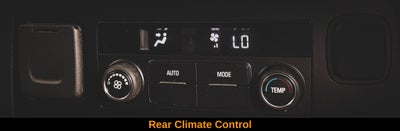

• Climate control, tri-zone automatic with individual climate settings for driver, right-front passenger and rear passengers (With (9C1) Police Vehicle or (5W4) Special Service Vehicle, includes dual-zone automatic, front and rear air conditioning electronic controls)
• Defogger, rear-window electric
• Power outlet, 110-volt
• Power outlets, 5 auxiliary, 12-volt includes outlets in the instrument panel, console, back of console, 1 in 3rd row and 1 in cargo area (With (AZ3) 40/20/40 split-bench front seats, the outlet on the back of the console is deleted.)

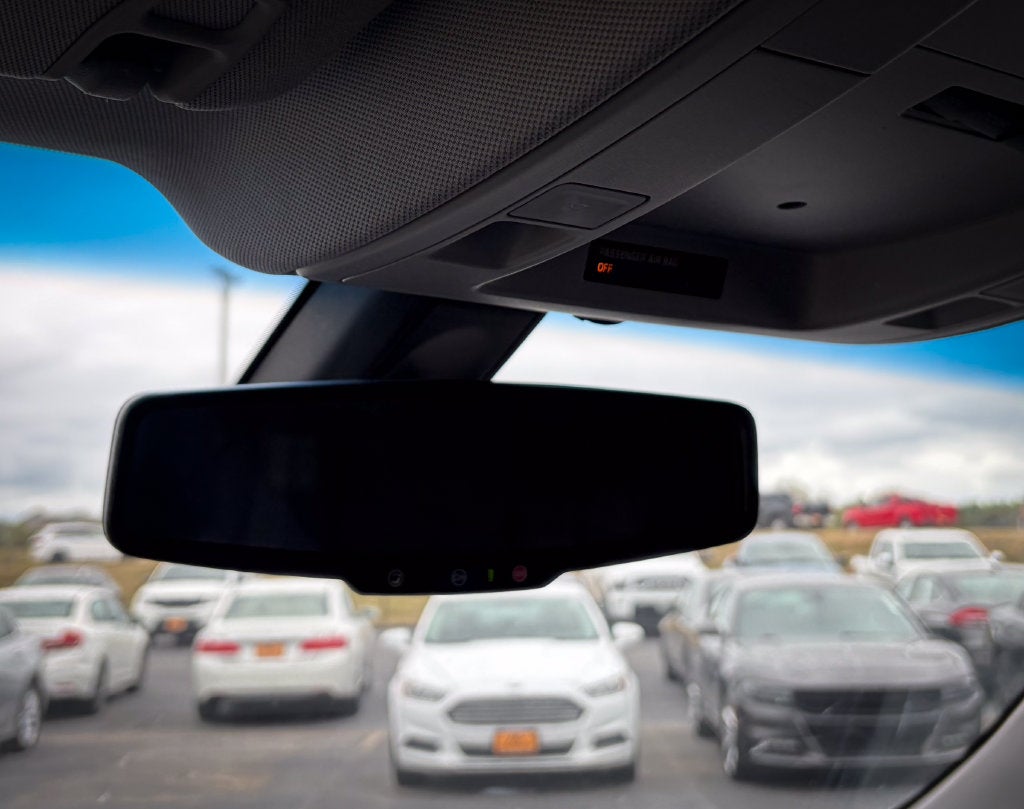

• Mirror, inside rearview manual day/night

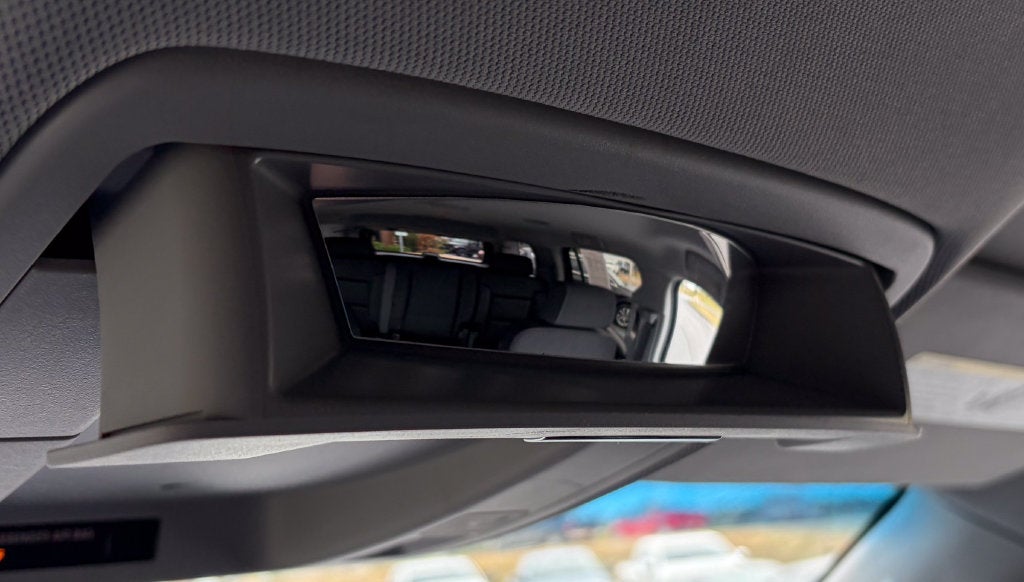

• Conversation mirror
• Assist handles, 1st row passenger and 2nd row outboard seats (With (9C1) Police Vehicle or (5W4) Special Service Vehicle, 1st row passenger assist handle is removed when (7X7) Spot lamps are ordered.)
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions. With (9C1) Police Vehicle or (5W4) Special Service Vehicle, interior lighting includes dome light, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions with control switch in the roof console
• Cargo management system
• Cargo net (Deleted when (ATD) 3rd row seat delete is ordered. )
• Chevrolet Connected Access with 10 years of standard connectivity which enables services such as, Vehicle Diagnostics, Dealer Maintenance Notification, Chevrolet Smart Driver, Marketplace and more; EFFECTIVE WITH SALES STARTING 5/1/2018. (Limitations apply. Not transferable. Standard connectivity available to original purchaser for ten years from the date of initial vehicle purchase for model year 2018 or newer Chevrolet vehicles. See onstar.com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and additional services enabled by Connected Access are subject to change.)

• Brakes, 4-wheel antilock, 4-wheel disc, VAC power with Brake Assist
• StabiliTrak, stability control system with brake assist, includes traction control
• Daytime Running Lamps, with automatic exterior lamp control
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Airbags, Frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for all rows in outboard seating positions (Included and only available with (AZ3) 40/20/40 split-bench front seat. With (9C1) Police Vehicle or (5W4) Special Service Vehicle requires (AZ3) 40/20/40 split-bench front seat and (9U3) SEO front center seat (20% seat) delete. Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Front outboard Passenger Sensing System for frontal outboard passenger airbag (Always use safety belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Door locks, rear child security
• OnStar and Chevrolet connected services capable; EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018. (Visit onstar.com for coverage map, details and system limitations. Services vary by model.)
• Rear Park Assist with audible warning

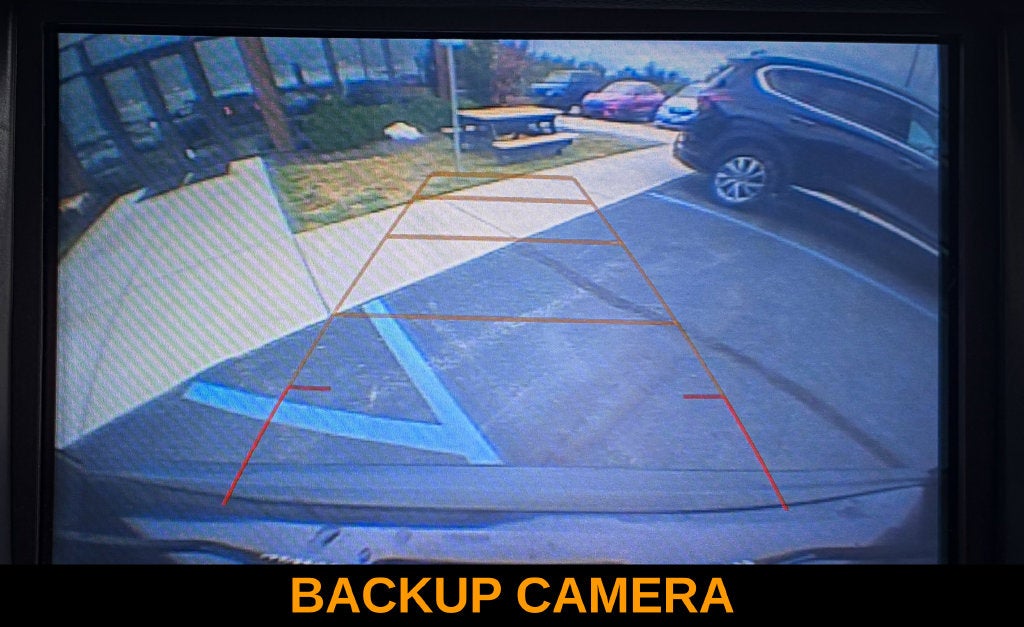

• Rear Vision Camera
• LATCH system (Lower Anchors and Top tethers for Children), for child safety seats; lower anchors and top tethers located in all second row seating positions, top tethers located in third row seating positions
• Tire Pressure Monitor System air pressure sensors in each tire with pressure display in Driver Information Center, includes Tire Fill Alert. With (9C1) Police Vehicle (5W4) Special Service Vehicle does not apply to spare tire.
• Theft deterrent, content, electrical, unauthorized entry

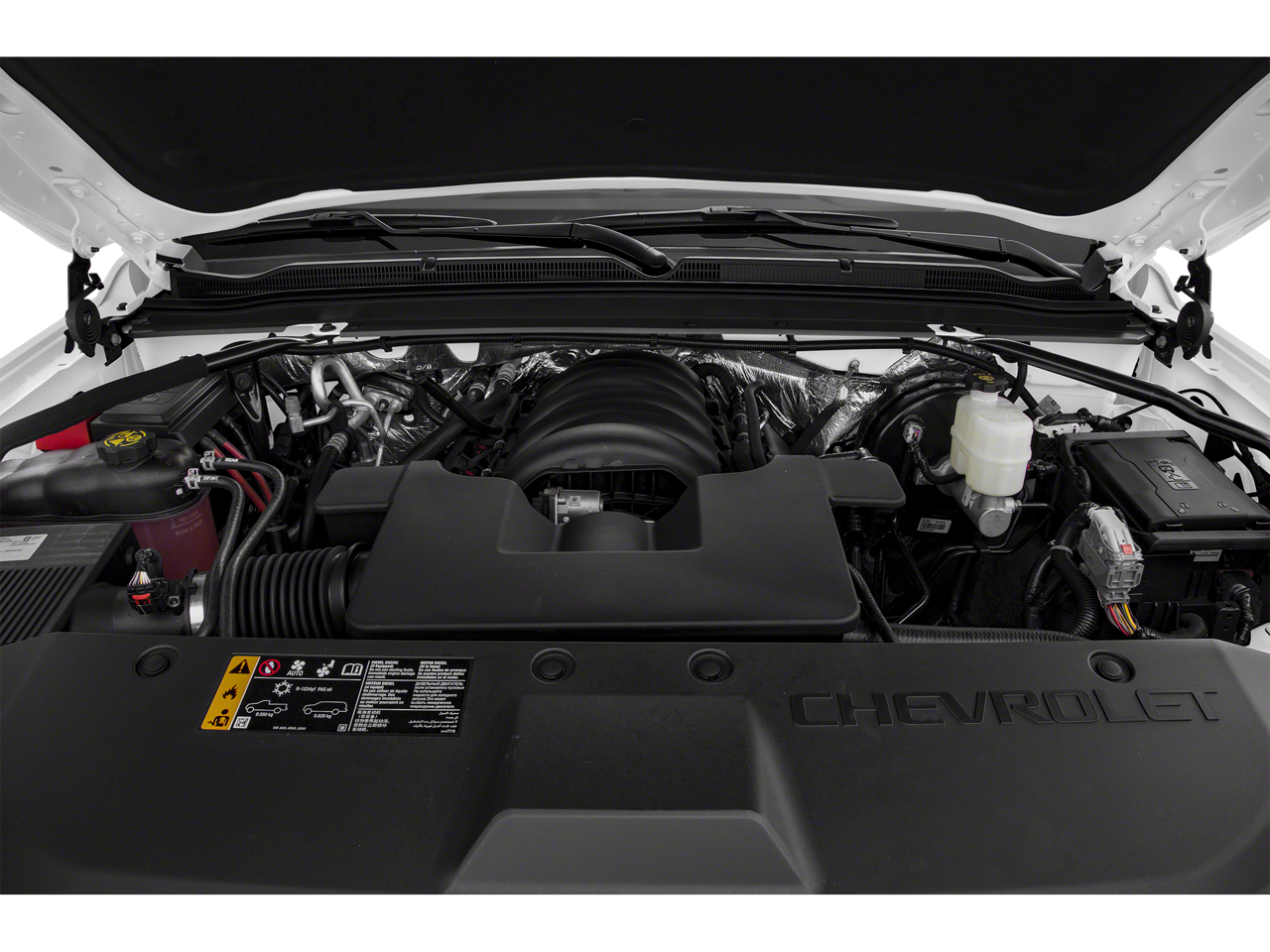

ENGINE, 5.3L ECOTEC3 V8 WITH ACTIVE FUEL MANAGEMENT, DIRECT INJECTION AND VARIABLE VALVE TIMING

• includes aluminum block construction (355 hp [265 kW] @ 5600 rpm
• 383 lb-ft of torque [518 N-m] @ 4100 rpm) (STD)

• Preferred Equipment Group 1FL
• 3.08 Rear Axle Ratio
• Wheels: 17" x 8" Painted Steel
• Front High-Back Reclining Bucket Seats
• 3rd Row Passenger Seat Delete
• Premium Cloth Seat Trim
• Radio: Chevrolet MyLink AM/FM Stereo
• License Plate Front Mounting Package
• Premium Smooth Ride Suspension Package
• 2-Speed Electronic Autotrac Active Transfer Case
• Skid Plate Package
• Cargo Net
• Extended-Range Remote Keyless Entry
• 3rd Row Manual 60/40 Split-Folding Fold Flat Bench
• 2nd Row 60/40 Split-Folding Manual Bench
• Driver & Front Passenger Airbags
• Driver Inboard & Front Passenger Airbags
• OnStar Basic Plan For 5 Years
• Black Rubberized Vinyl Floor Covering
• Black Assist Steps

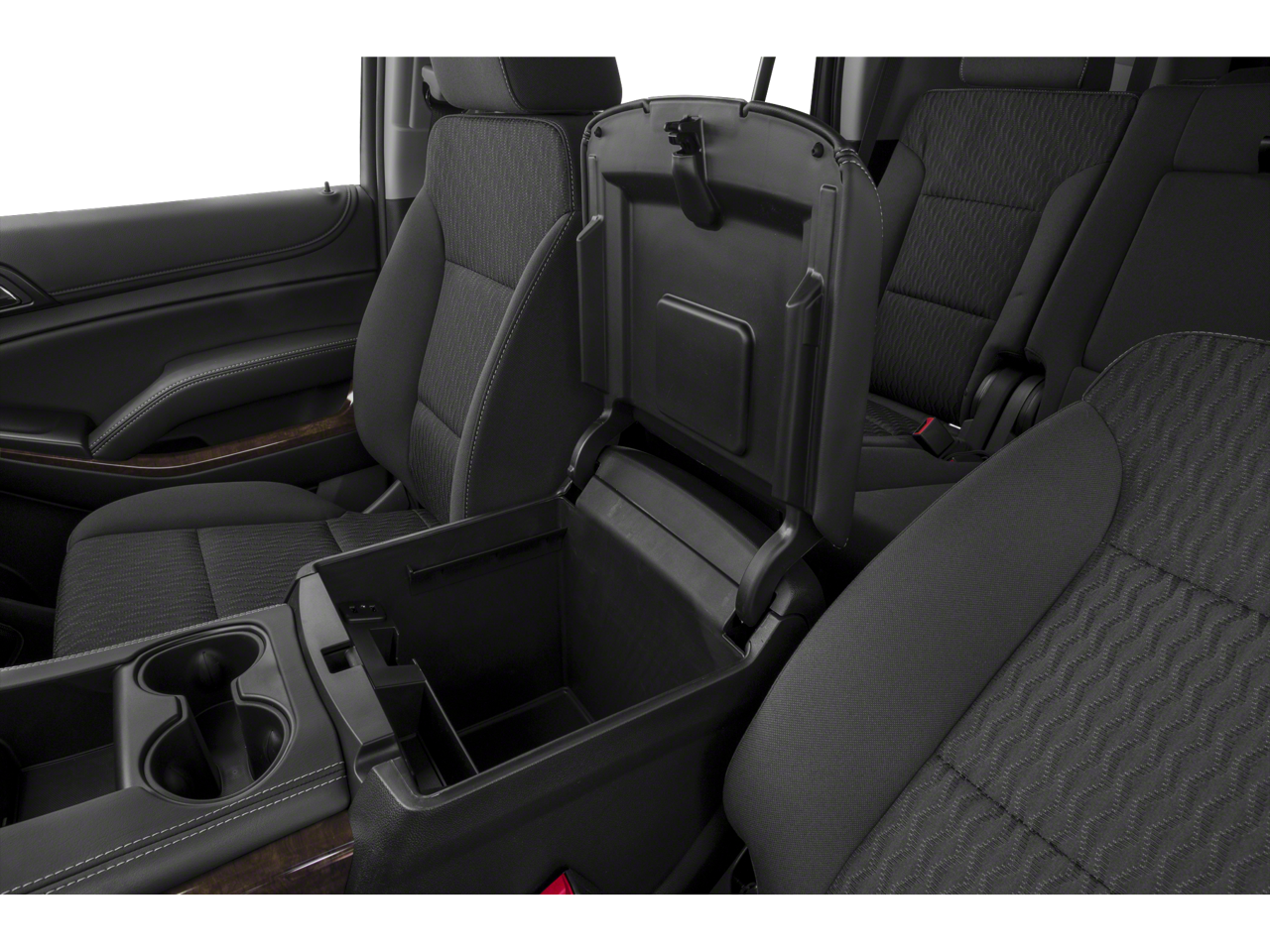

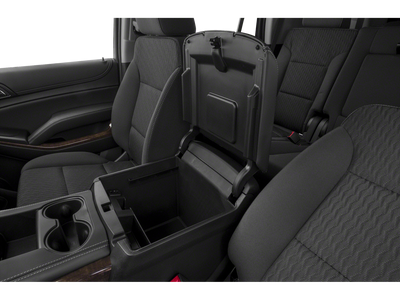

• Floor Console
• 4-Wheel Antilock Disc Brakes w/Brake Assist
• Electronic Cruise Control w/Set & Resume Speed
• Single-Speed Elec Autotrac Active Transfer Case
• 5 12-Volt Auxiliary Power Outlets
• Single-Slot CD/MP3 Player
• SiriusXM Satellite Radio Delete
• Rear Park Assist w/Audible Warning
• 6-Speaker Audio System Feature
• Bluetooth® For Phone
• 4-Wheel Disc Brakes
• Apple CarPlay/Android Auto
• Emergency communication system: OnStar Guidance
• Exterior Parking Camera Rear
• Premium audio system: Chevrolet MyLink
• Front Center Armrest w/Storage
• Compass
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Steering wheel mounted audio controls
• Split folding rear seat
• Speed-sensing steering
• Speed control
• Security system
• Remote keyless entry
• Rear window wiper
• Rear window defroster
• Rear seat center armrest
• Rear reading lights
• Rear anti-roll bar
• Rear air conditioning
• Rain sensing wipers
• Power windows
• Power steering
• Power passenger seat
• Power driver seat
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm

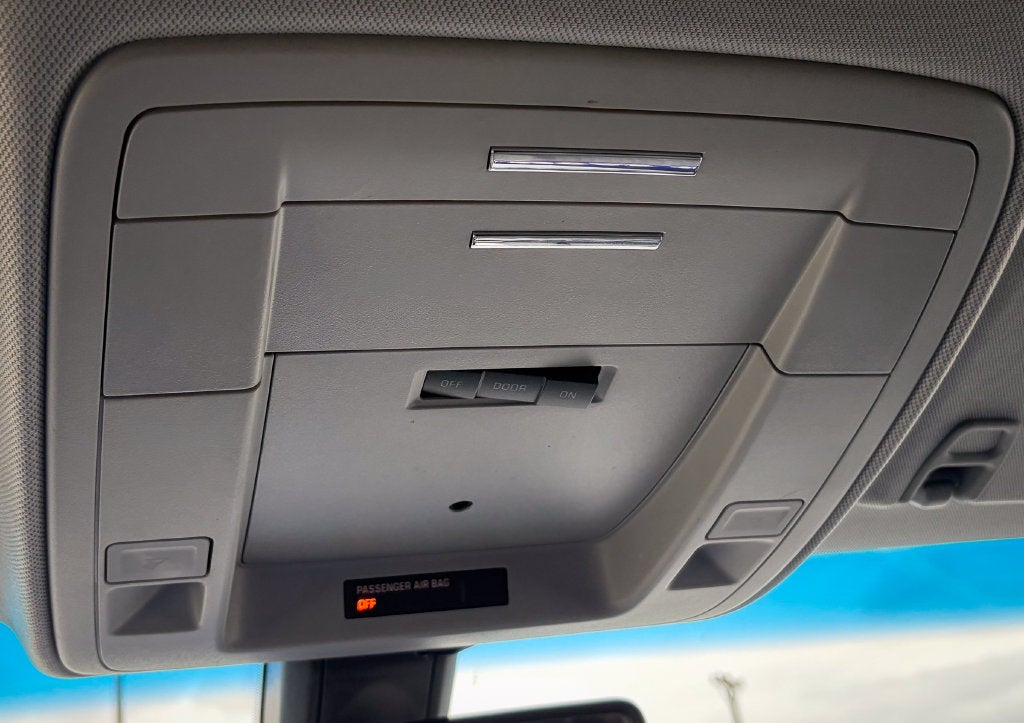

• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Low tire pressure warning
• Illuminated entry
• Heated door mirrors
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front dual zone A/C
• Front anti-roll bar
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• CD player
• Bumpers: body-color
• Brake assist
• Automatic temperature control
• AM/FM radio
• ABS brakes
• 3rd row seats: split-bench
• Voltmeter
• Tachometer
• Spoiler
• Electronic Stability Control
• Air Conditioning
• 6 Speakers

• Vehicle
• Rear Door Type: Liftgate
• Mileage
• Fuel Economy Est-Combined (MPG): 18
• EPA Fuel Economy Est - City (MPG): 16
• EPA Fuel Economy Est - Hwy (MPG): 22
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 720
• Maximum Alternator Capacity (amps): 150
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3600
• Gross Axle Wt Rating - Rear (lbs): 4100
• Curb Weight - Front (lbs): 2913.0
• Curb Weight - Rear (lbs): 2689.0
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 640
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Link
• Spring Capacity - Front (lbs): - TBD -
• Spring Capacity - Rear (lbs): - TBD -
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3600
• Axle Capacity - Rear (lbs): 4100
• Axle Ratio (:1) - Front: 3.08
• Axle Ratio (:1) - Rear: 3.08
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): - TBD -
• Rear Brake Rotor Diam x Thickness (in): - TBD -
• Tires
• Front Tire Order Code: RC3
• Rear Tire Order Code: RC3
• Front Tire Size: P265/70R17
• Rear Tire Size: P265/70R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: N/A
• Revolutions/Mile @ 45 mph - Rear: N/A
• Revolutions/Mile @ 45 mph - Spare: N/A
• Wheels
• Front Wheel Size (in): 17 x 8.0
• Rear Wheel Size (in): 17 x 8.0
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr Rack & Pinion
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): - TBD -
• Turning Diameter - Wall to Wall (ft): N/A
• Frame
• Frame Type: - TBD -
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 26
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 116.00
• Length, Overall w/rear bumper (in): 204.00
• Width, Max w/o mirrors (in): 80.50
• Height, Overall (in): 74.40
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 35.91
• Ground Clearance, Front (in): 7.87
• Ground Clearance, Rear (in): 7.87
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Step Up Height - Front (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): - TBD -
• Cargo Area Length @ Floor to Seat 1 (in): 79.90
• Cargo Area Length @ Floor to Seat 2 (in): 43.20
• Cargo Area Length @ Floor to Seat 3 (in): 11.10
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.30
• Cargo Box (Area) Height (in): 33.94
• Cargo Volume to Seat 1 (ft³): 94.7
• Cargo Volume to Seat 2 (ft³): 51.7
• Cargo Volume to Seat 3 (ft³): 15.3
• Interior Dimensions
• Passenger Capacity: 9
• Front Head Room (in): 42.80
• Front Leg Room (in): 45.30
• Front Shoulder Room (in): 64.80
• Front Hip Room (in): 60.80
• Second Head Room (in): 38.70
• Second Leg Room (in): 39.00
• Second Shoulder Room (in): 65.10
• Second Hip Room (in): 60.30
• Third Head Room (in): 38.10
• Third Leg Room (in): 24.80
• Third Shoulder Room (in): 62.60
• Third Hip Room (in): 49.30
• Summary

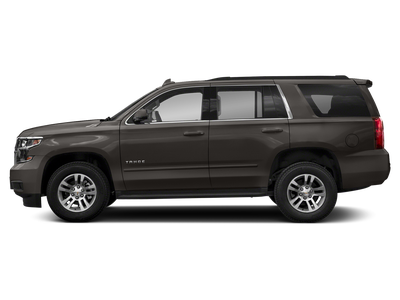

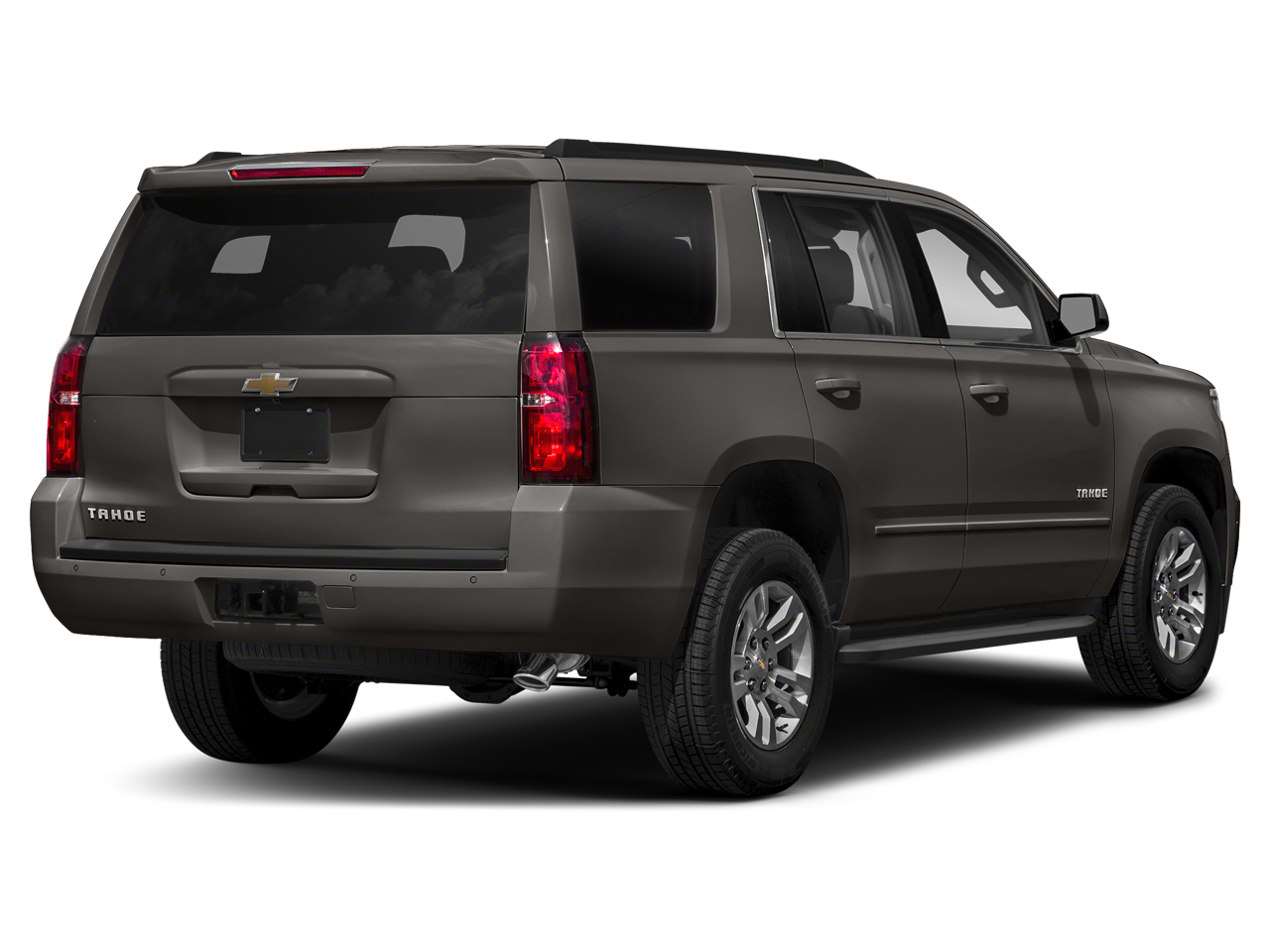

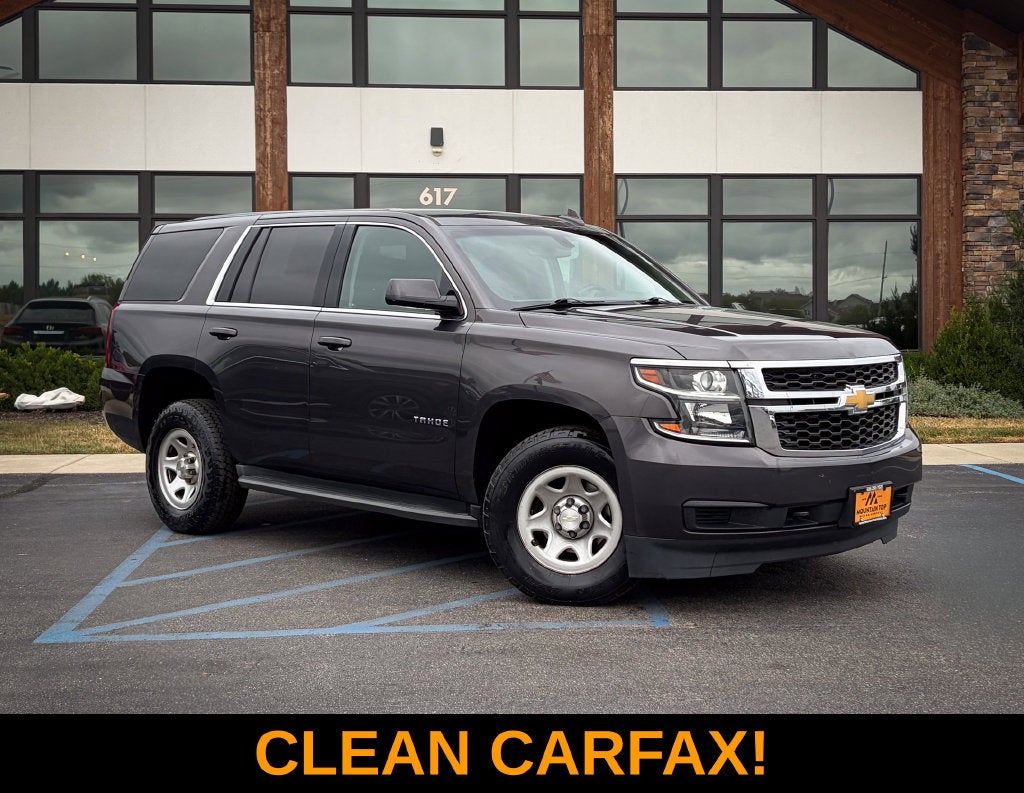

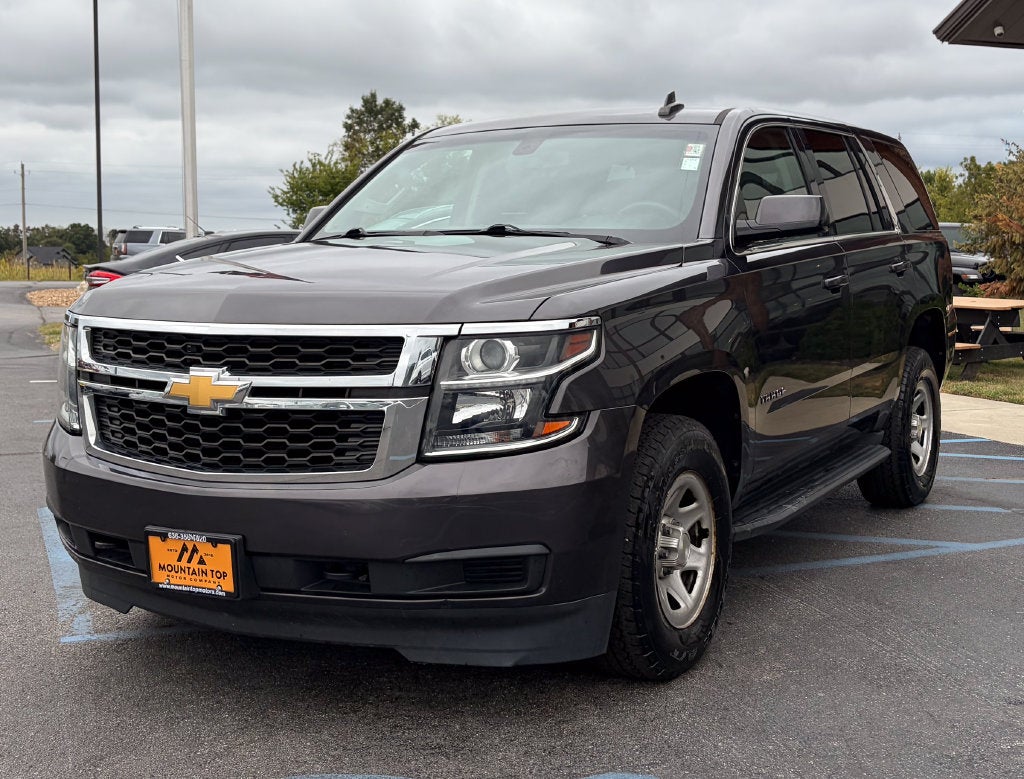

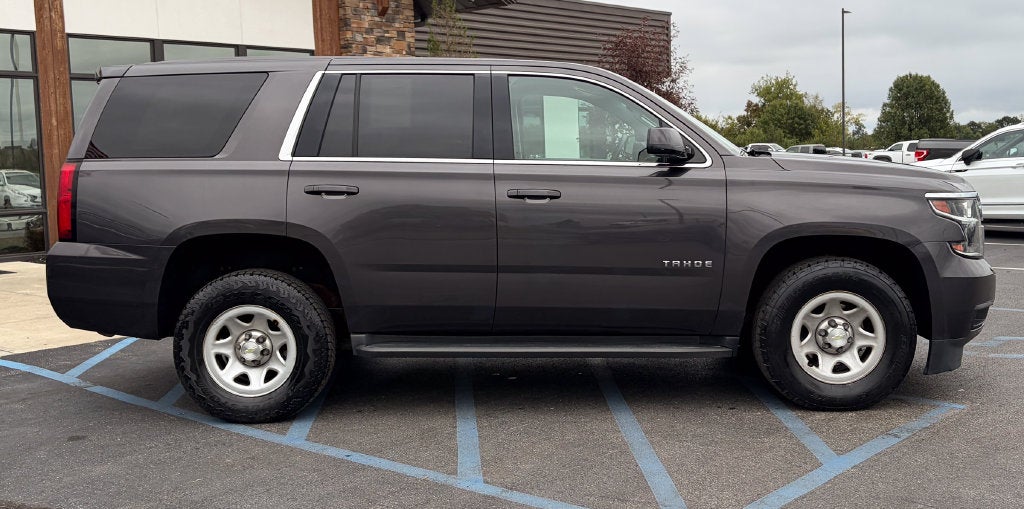

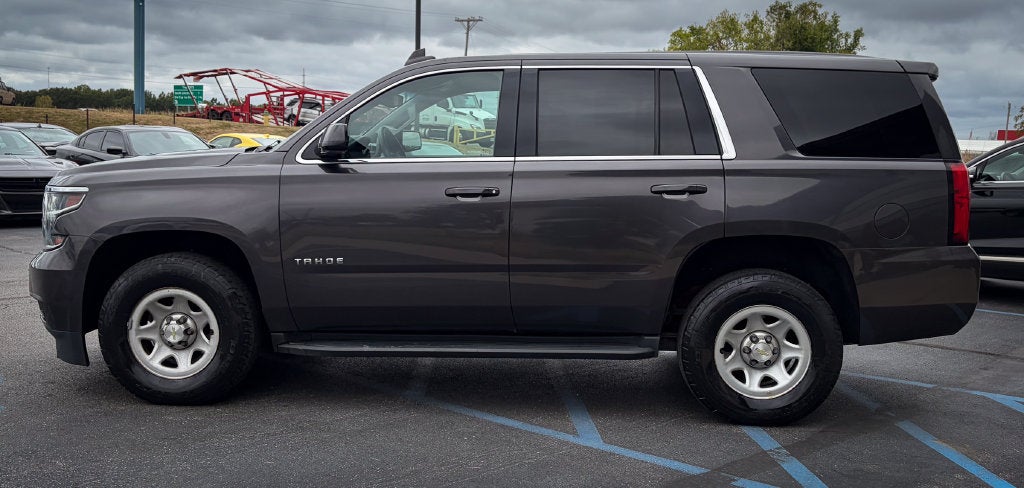

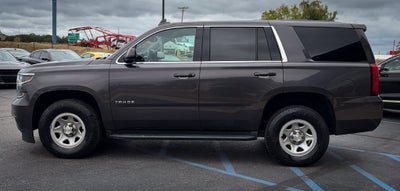

• Vehicle Name: Chevrolet Tahoe
• Body Style: Sport Utility Vehicle
• Body Code: E52
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 9.8
