• Paint, solid
• Bumper, front, chrome (Includes body-color lower.)
• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete.)
• Air dam, Gray
• Wheel flares, front only (With (GEC) 9800 lbs. (4445 kg) GVWR or (C4M) 9900 lbs. (4491 kg) includes rear wheel flares unless (ZW9) pickup box delete is ordered. See Color & Trim section for available colors)

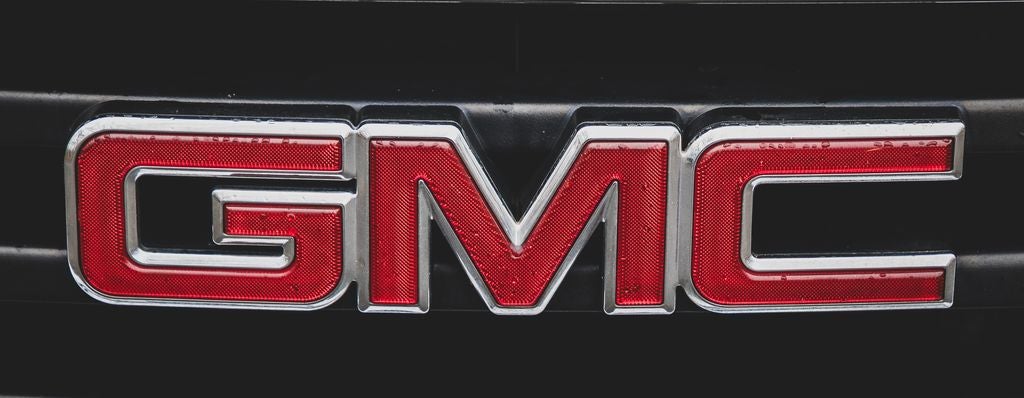

• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Daytime Running Lamps, with automatic exterior lamp control
• Fog lamps, front, halogen
• Lamps, Amber roof marker (Standard with (C7W) 11,400 lbs. (5171 kg) GVWR only. With (C6Y) 9600 lbs. GVWR (single rear wheel), (GEC) 9800 lb. GVWR single rear wheel) or (C4M 9900 lbs. GVWR (single rear wheel), not available with (YF5) California state emissions requirements)
• Lamps, dual cargo area lamps
• Mirrors, outside heated power-adjustable, Black, manual-folding (Upgradeable to (DL3) outside heated, power-adjustable, power-folding mirrors when (C6Y) 9600 lbs. (4354 kg) GVWR, (GEC) 9800 lbs. (4445 kg) GVWR or (C4M) 9900 lbs. (4491 kg) GVWR is ordered or (DPN) outside vertical camper mirrors.
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass) (With Regular Cab models, includes rear window. With Extended and Crew Cab models, includes rear and rear quarter windows. With (C49) rear-window defogger, includes light-tinted rear window.)
• Wipers, front intermittent wet-arm with pulse washers
• Tailgate protection, top of tailgate protection cap (Not available with (ZW9) pickup box delete.)

• Seat trim, leather (Not available with Regular Cab models. Extended Cab models include front leather seating surfaces with rear vinyl bench. Crew Cab models include front and rear leather-appointed seating surfaces.)

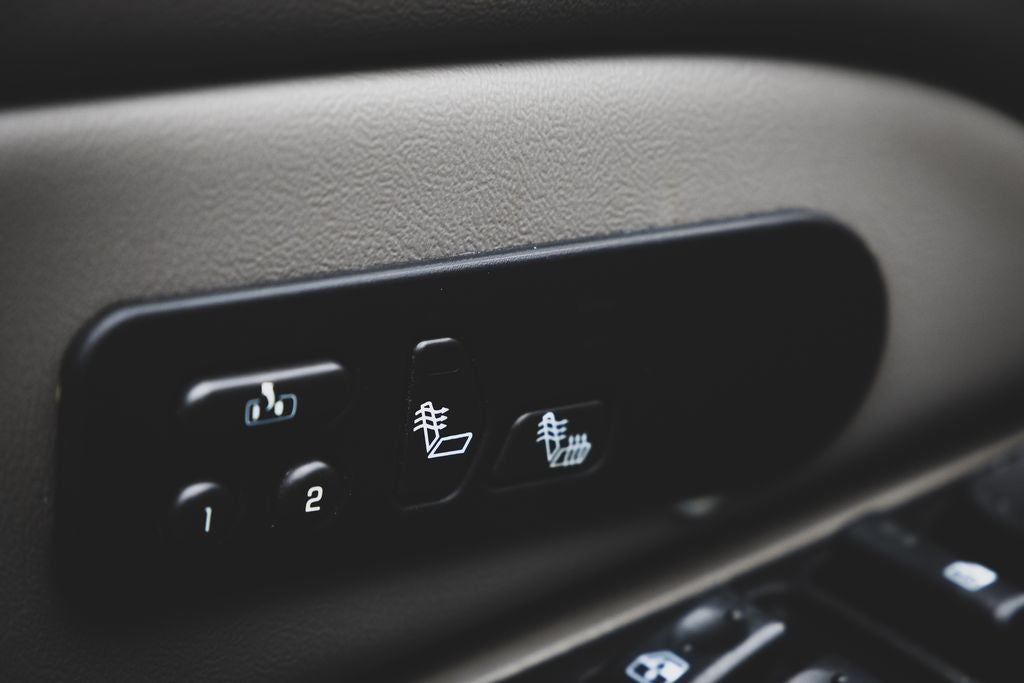

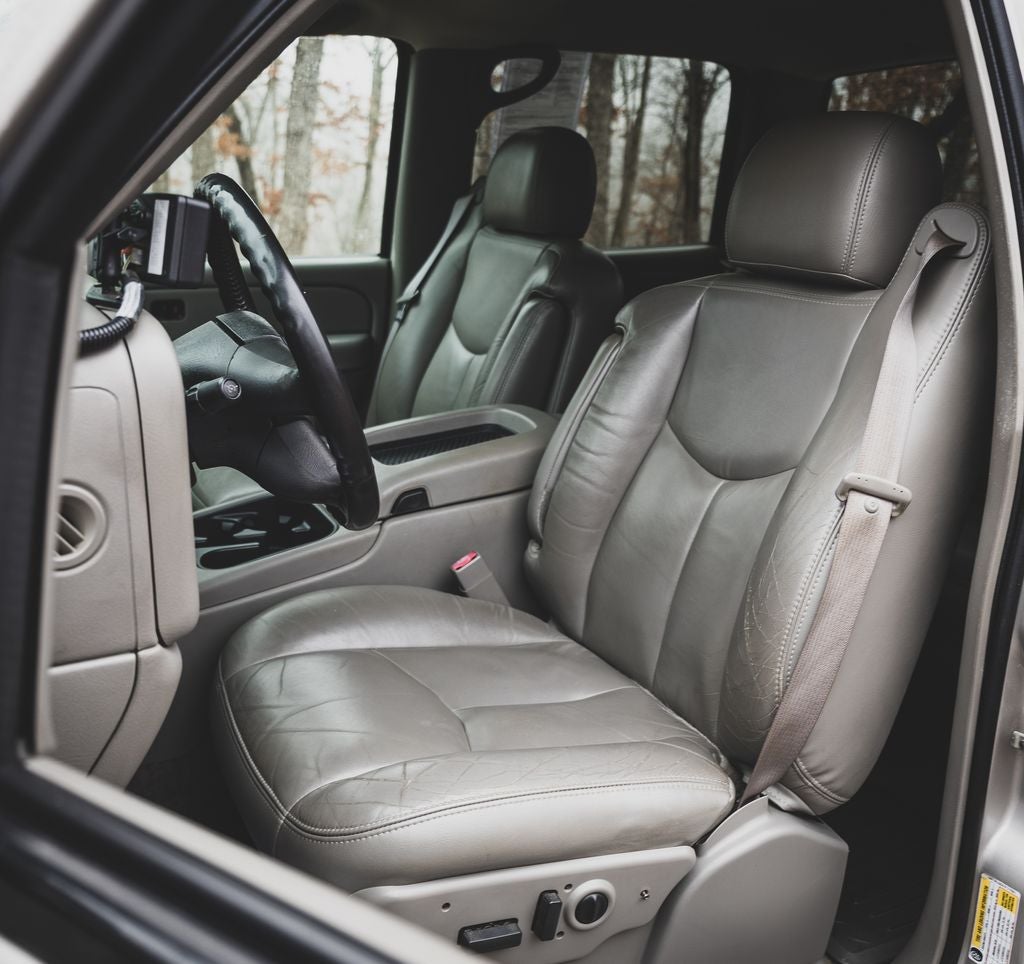

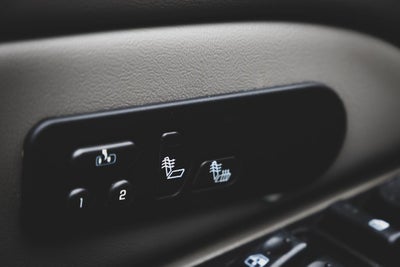

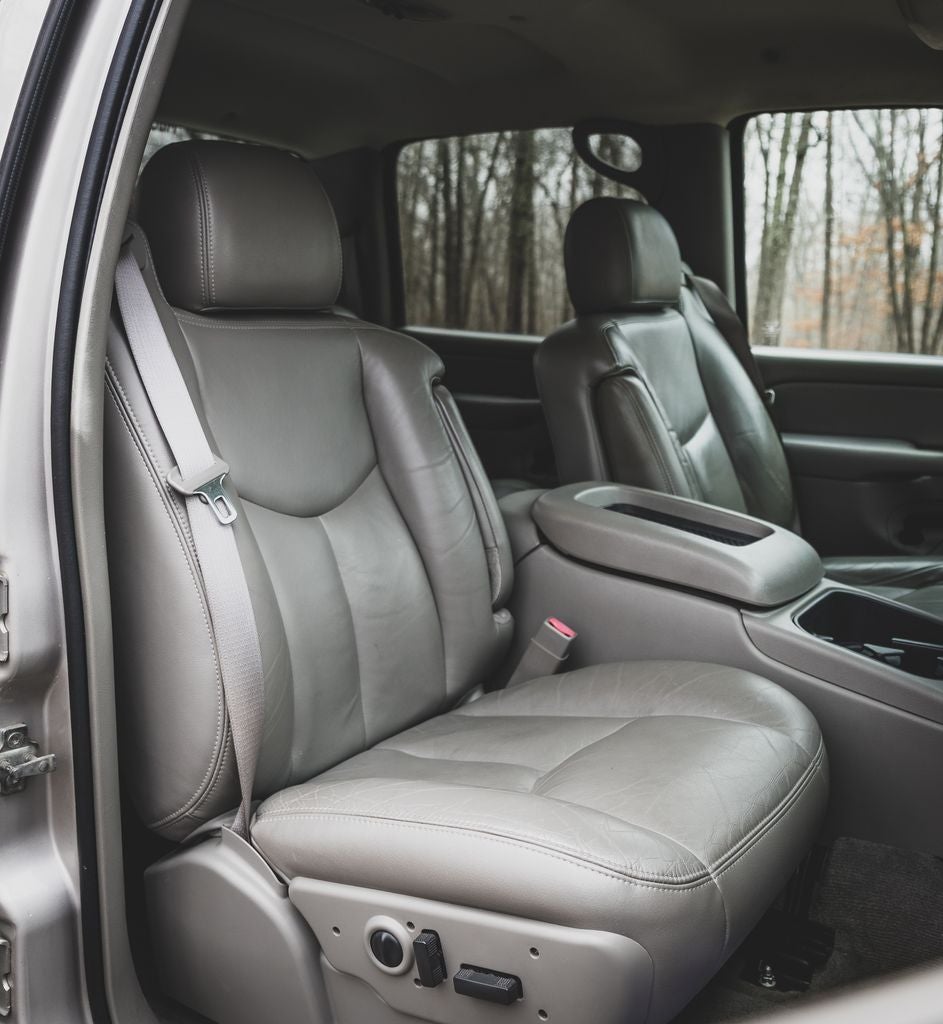

• Seats, front buckets, includes 10-way power driver and front passenger seat adjusters, 2-way power lumbar control, heated seat cushions and seatbacks, 2-position driver memory, adjustable outboard head restraints, floor console, dual inboard armrests and storage pockets

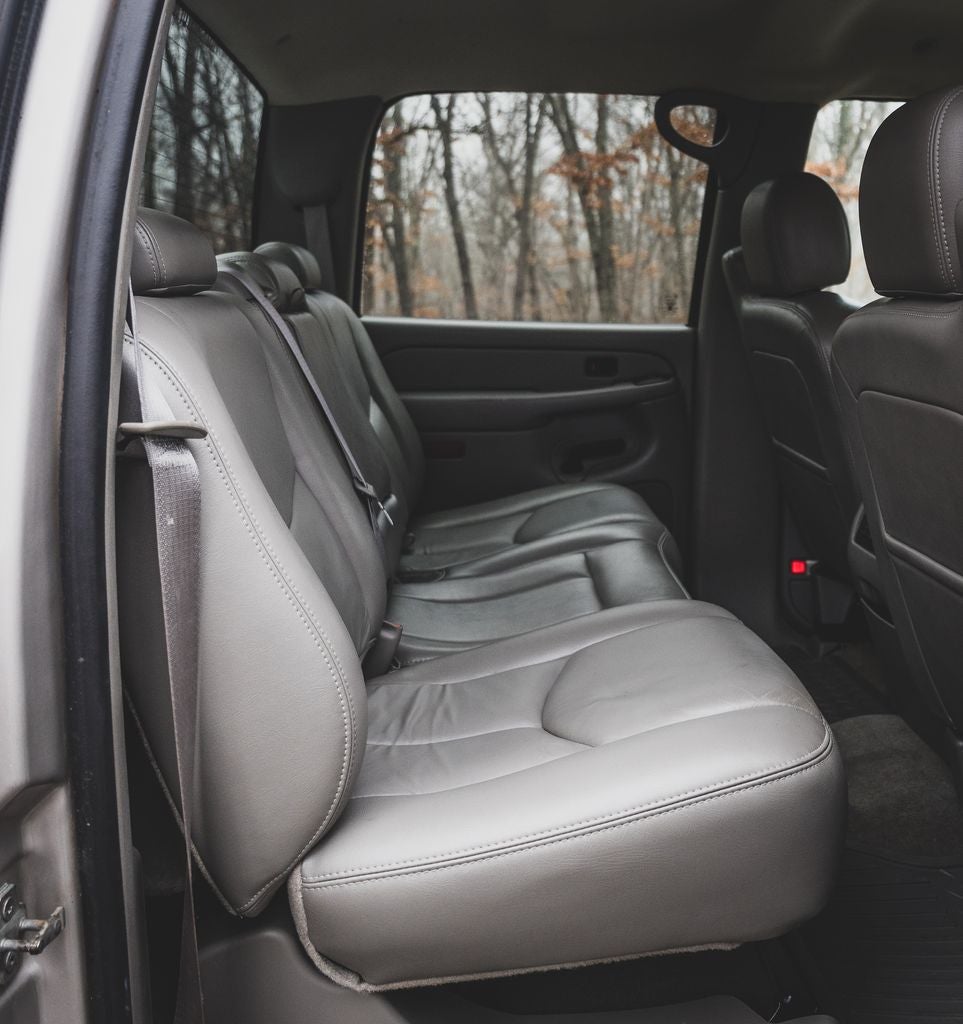

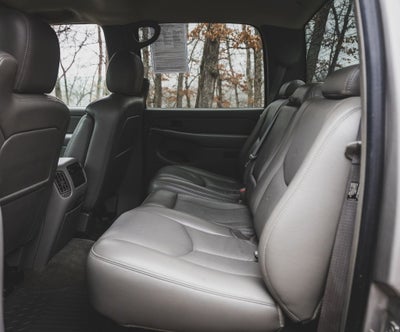

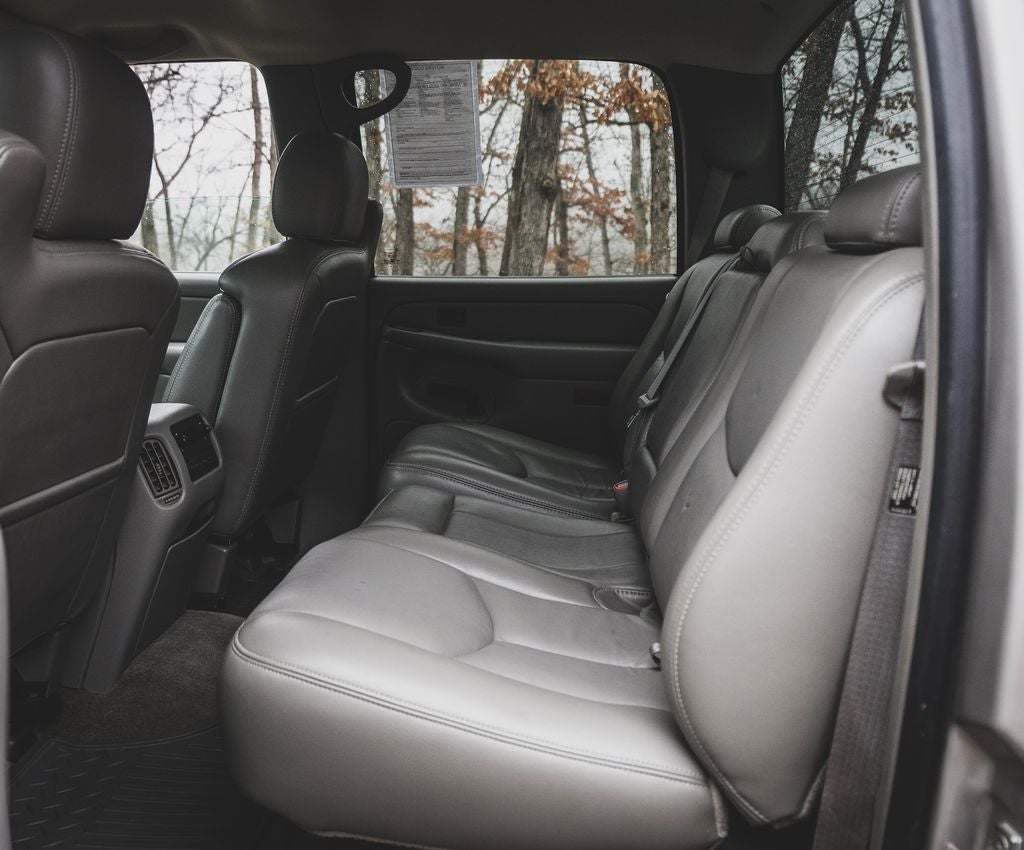

• Seat, rear folding bench, 3-passenger (includes top tethers and lower anchors for child seat)
• Seat adjuster, driver 6-way power (With (AN3) Seats, front full-feature bucket seats, includes 10-way power adjusters.)
• Seat adjuster, front passenger 10-way power (Included and only available with (AN3) front full-feature bucket seats.)

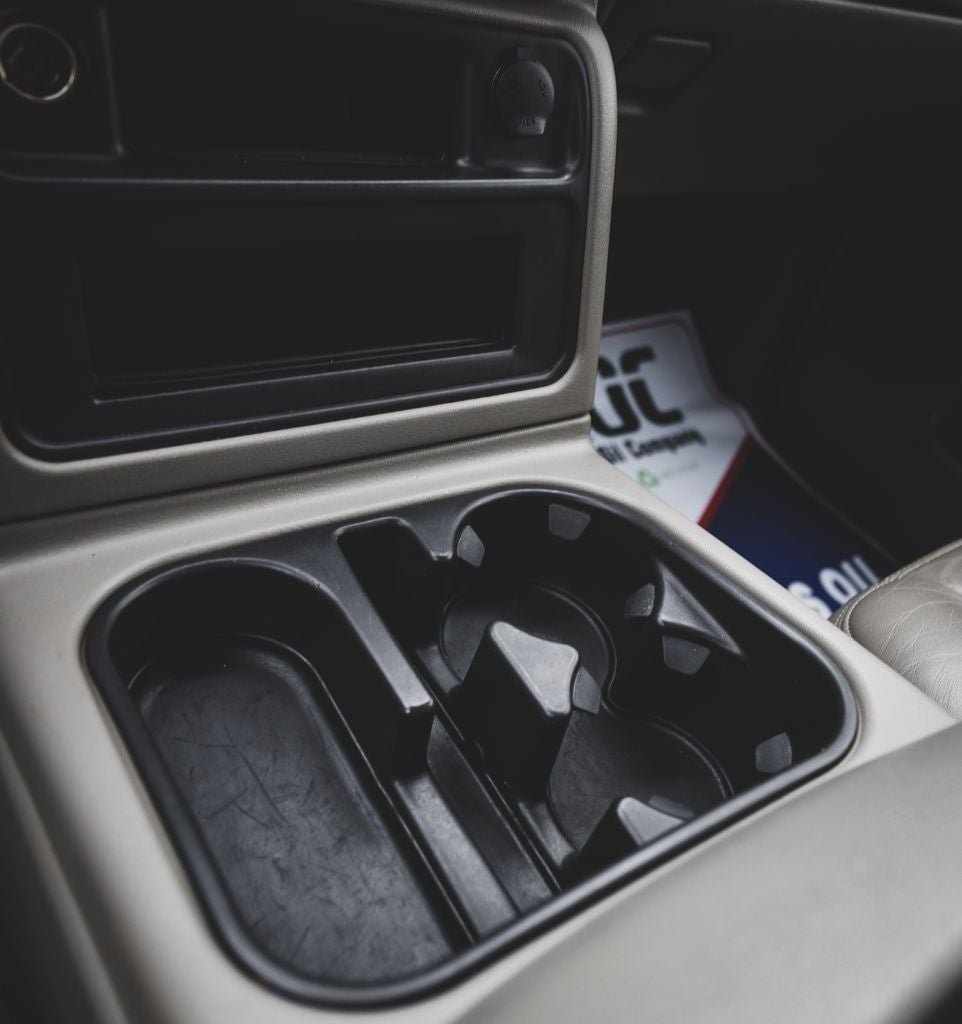

• Console, floor with storage compartment and dual cup holders
• Floor covering, color-keyed carpeting with rubberized vinyl floor mats (Extended and Crew Cab models also include rear floor mats)

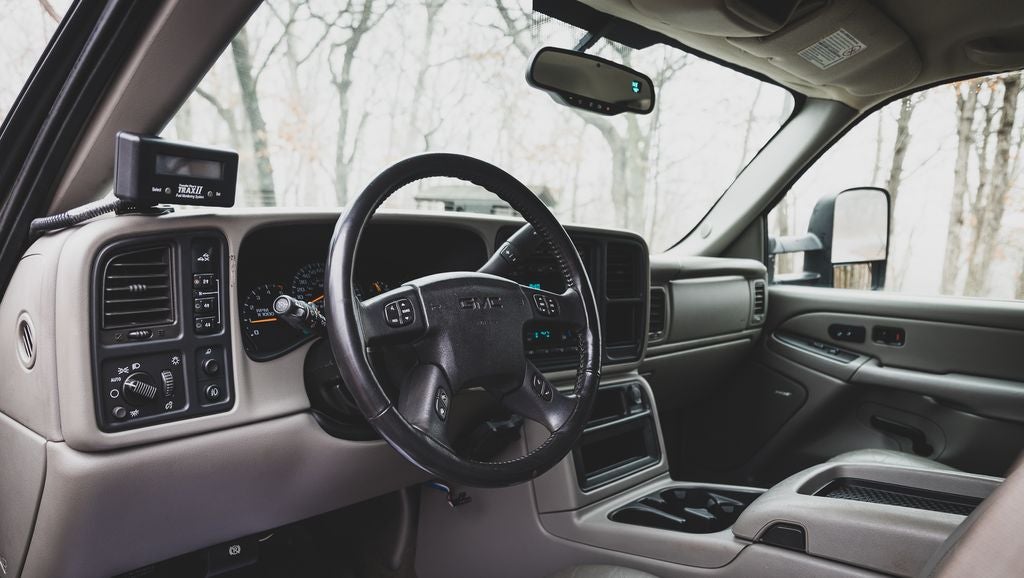

• Steering wheel, leather-wrapped, Black with theft-deterrent locking feature
• Theft-deterrent system, vehicle, PASSLock II
• Warning tones, headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Defogger, rear-window electric (Not available with (A28) sliding rear window.)
• Cruise control, electronic with set and resume speed
• Door locks, power

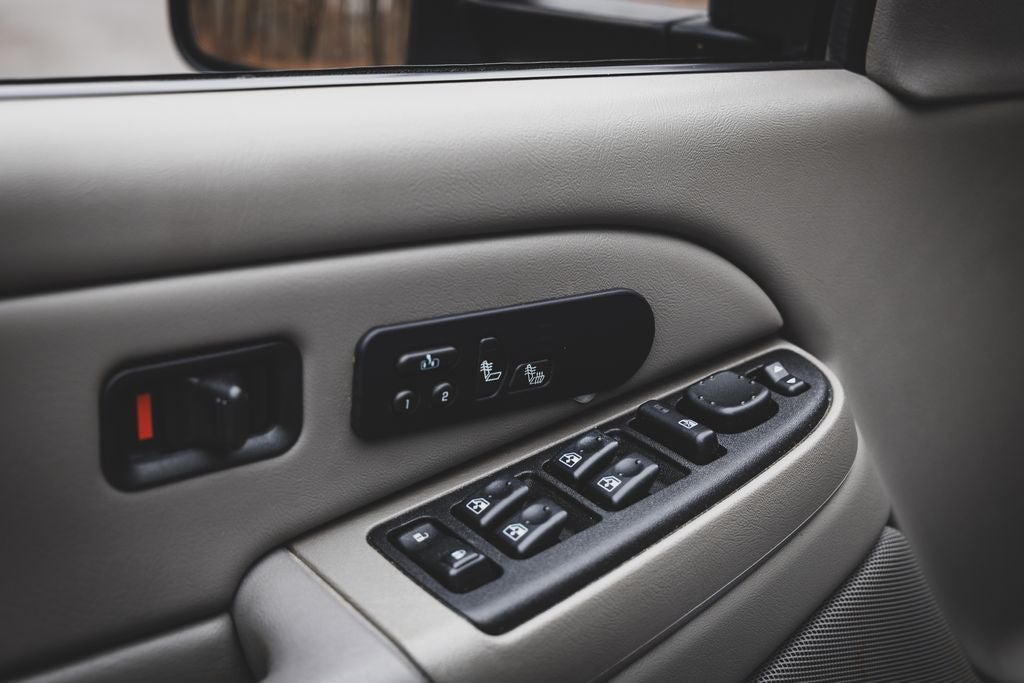

• Windows, power with driver and front passenger Express-Down
• Remote Keyless Entry, with 2 transmitters, panic button and content theft alarm

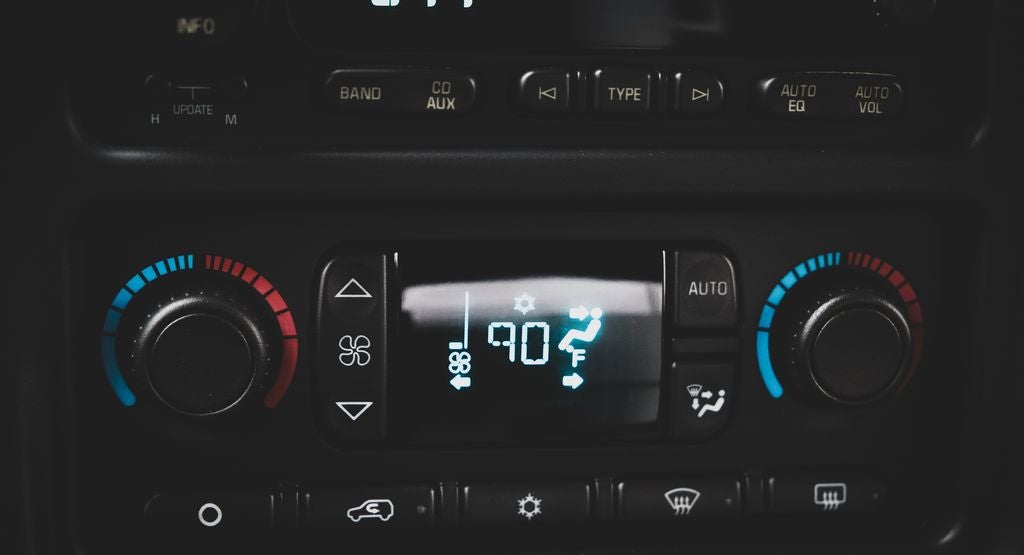

• Air conditioning, dual-zone automatic climate control with individual climate settings for driver and right-front passenger (Must be substituted with (CJ3) dual-zone manual air conditioning when (VYU) Snow Plow Prep Package is ordered. Not available with (VYU) Snow Plow Prep Package.)

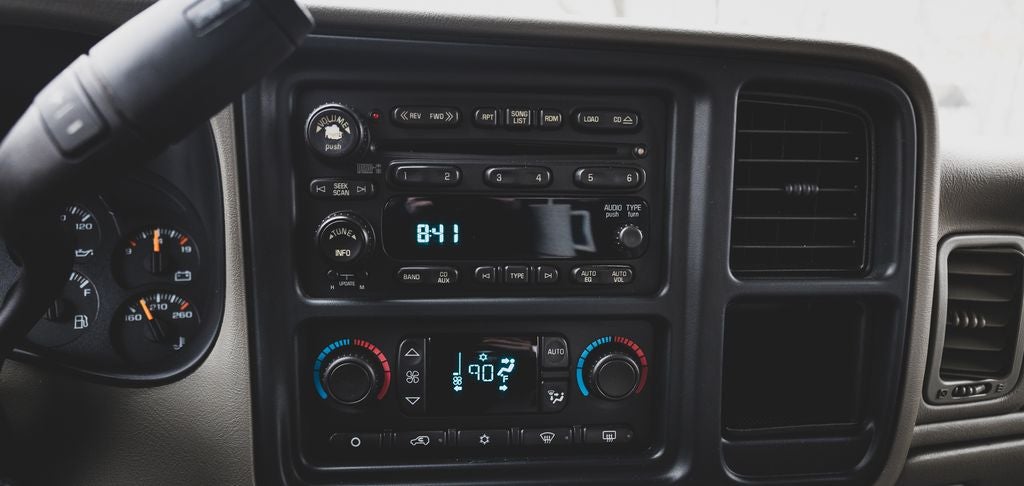

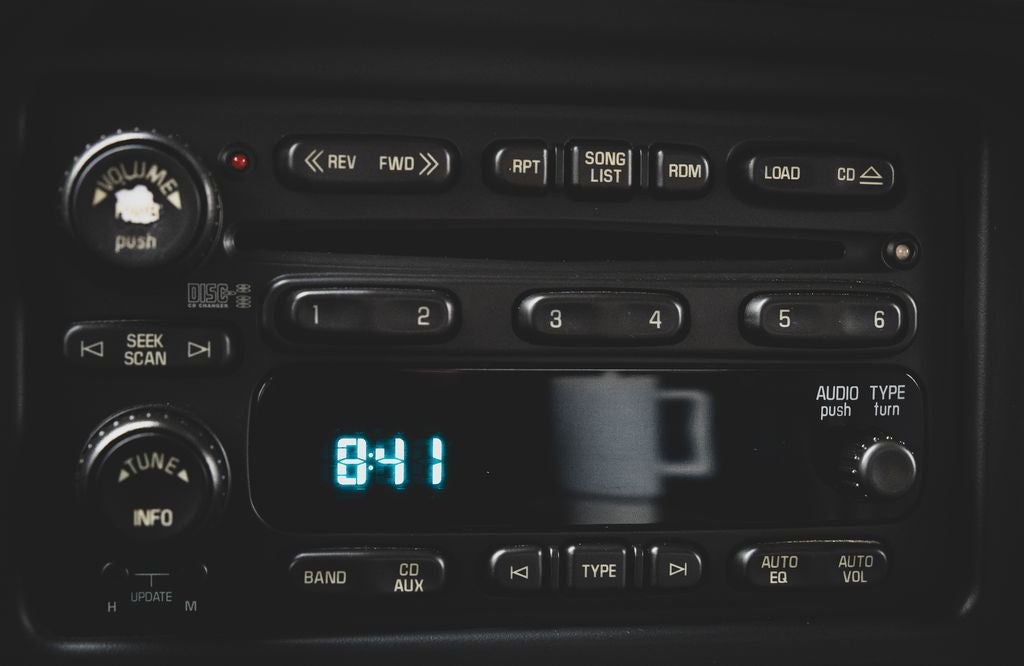

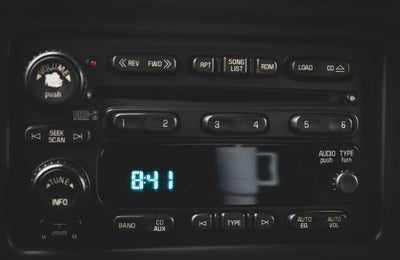

• Audio system, AM/FM stereo with 6-disc CD changer, seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume, and TheftLock

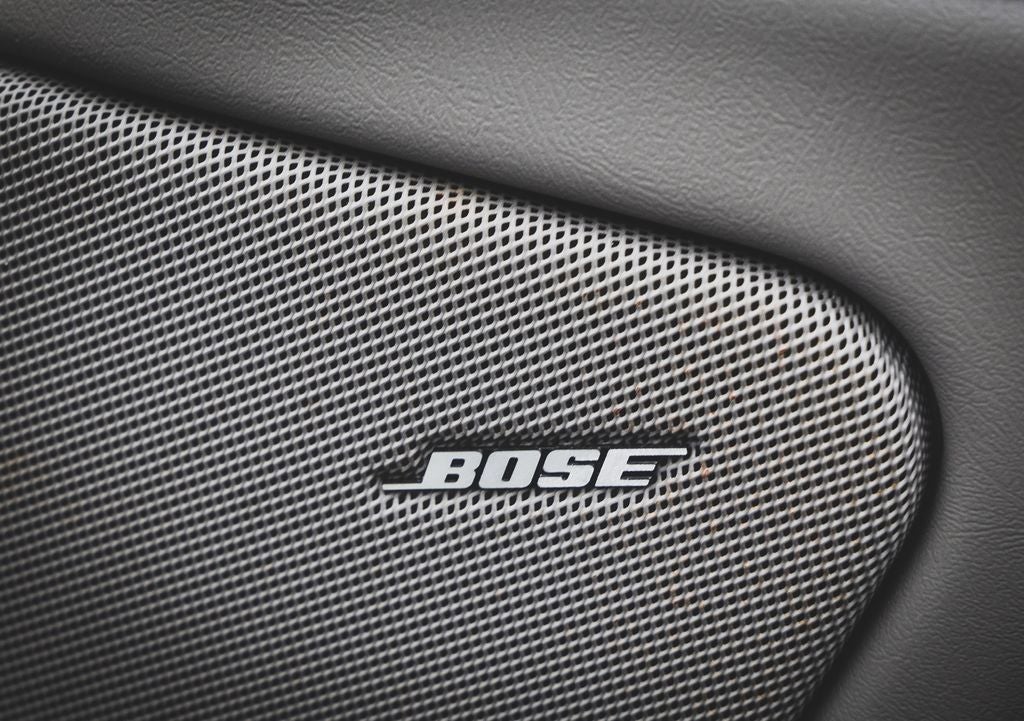

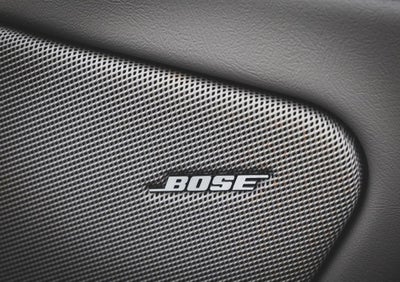

• Audio system feature, Bose Premium speaker system with sub-woofer in center console
• Audio system controls, rear with 2 headphone jacks (headphones not included), power outlet and controls for volume, station selection and media (Requires Crew Cab models.)

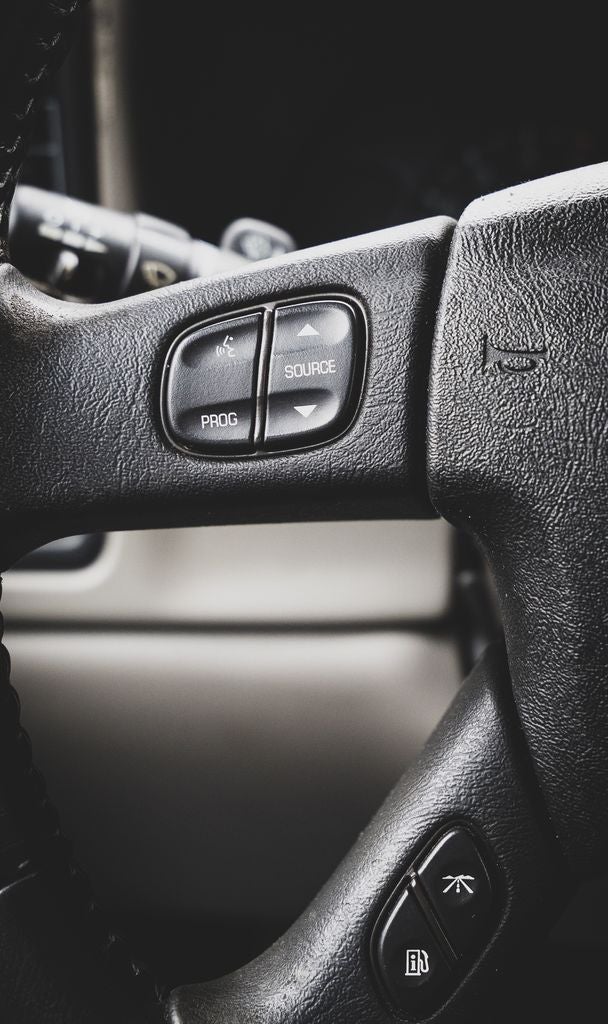

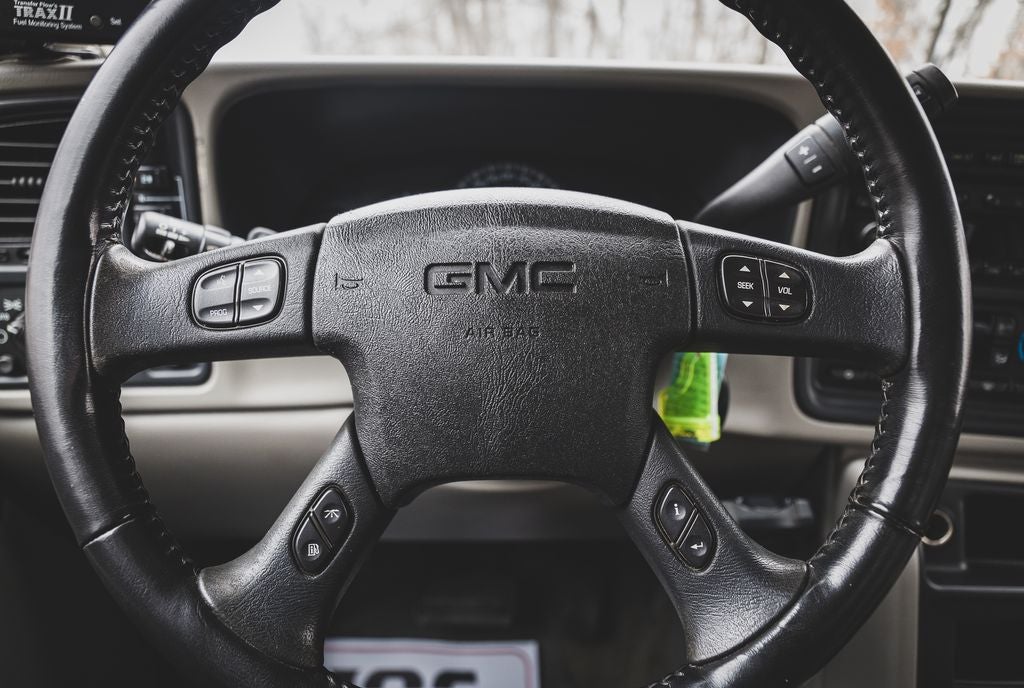

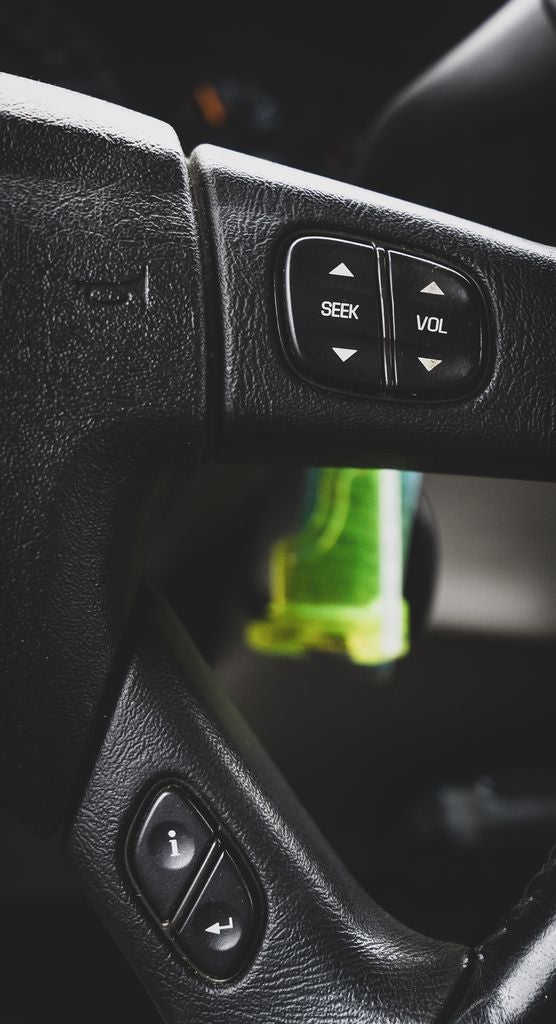

• Steering wheel controls, mounted audio and Driver Information Center controls which provides access to enhanced Driver Information Center features and information
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab Models.)
• Cigarette lighter, on instrument panel
• Power outlets, 2 auxiliary instrument panel-mounted with covers, 12-volt
• Door trim, side reflectors (Also includes lights on front doors.)
• Headliner, Shale-colored cloth with matching retainer moldings

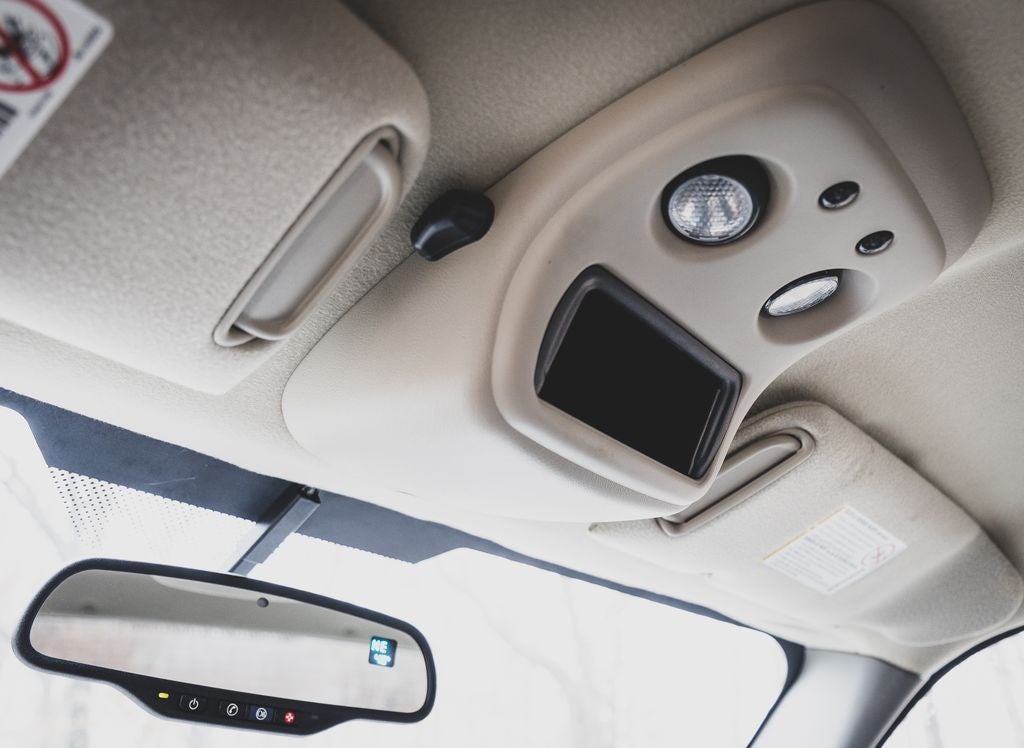

• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Console, overhead mini with map lights (Not available with (CF5) power sunroof)
• Visors, driver and front passenger, padded with cloth trim, extenders, pocket on driver side and vanity mirror on passenger-side, Shale-colored
• Assist handle, front passenger (Also includes rear outboard passenger assist handle on Extended and Crew Cab models.)
• Lighting, interior with dome and reading lights, backlit instrument panel switches and door handle-activated illuminated entry
• Coat hook, driver-side rear (Also includes passenger-side coat hook on Extended and Crew Cab models.)

• Brakes, 4-wheel antilock, 4-wheel disc
• Air bags, frontal, driver and right-front passenger (Regular and Extended Cab models includes passenger-side deactivation switch. Never place a rear- facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your childs age and size. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Daytime Running Lamps, with automatic exterior lamp control

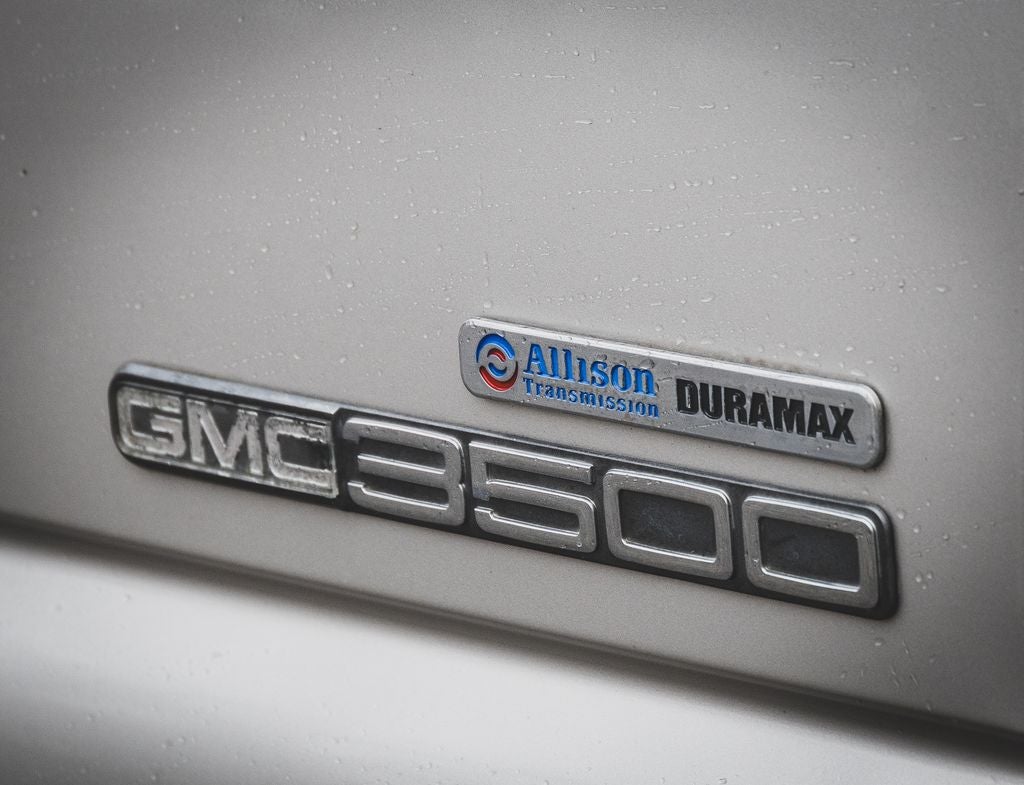

ENGINE, DURAMAX 6.6L TURBO DIESEL V8

• (360 hp [268.0 kW] @ 3200 rpm
• 650 lb-ft of torque [881.0 N-m] @ 1600 rpm) Includes (TQ3) heavy-duty dual
• 770 cold-cranking-amp batteries
• (KG3) 145-amp alternator
• (K47) high-capacity air cleaner and (K05) engine block heater.)

• Heavy-Duty Rear Automatic Locking Differential
• Spare Tire Lock
• Electronic Cruise Control w/Set & Resume Speed
• Power Door Locks

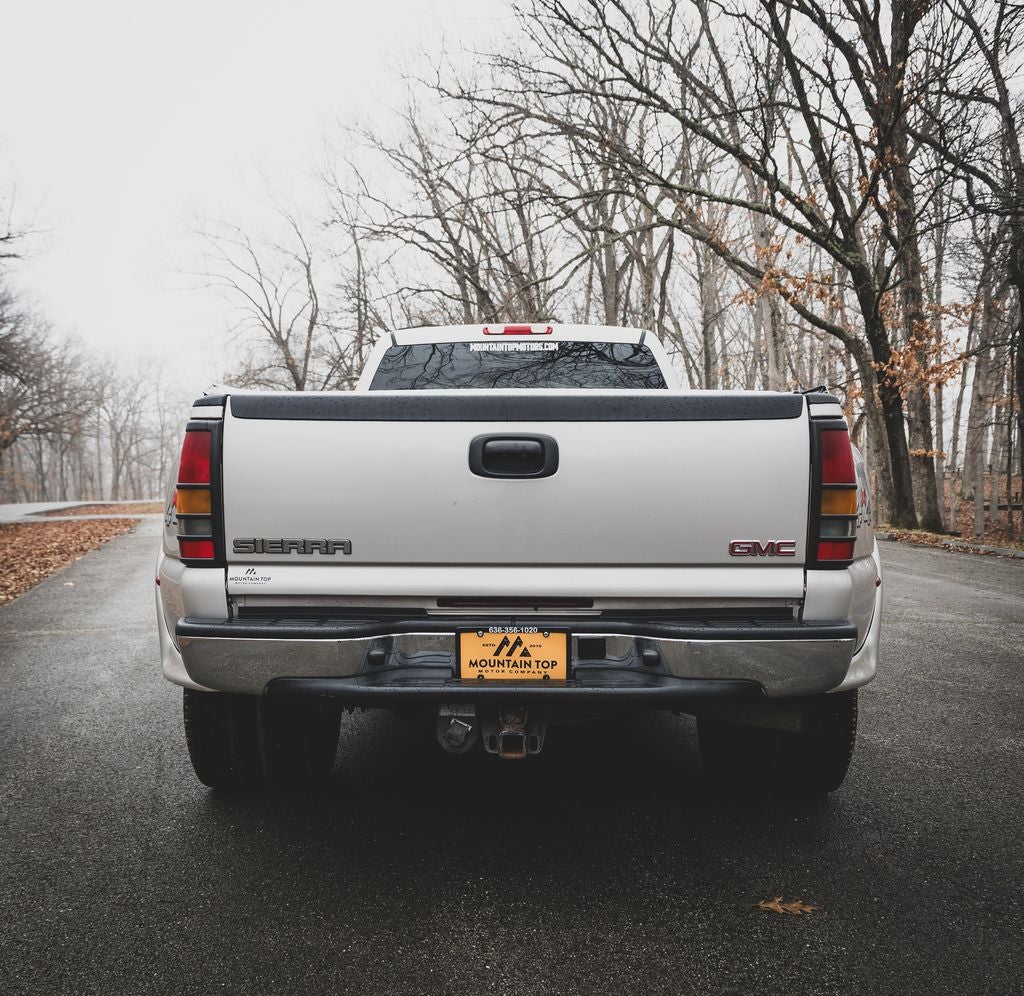

• Chrome Rear Step-Style Bumper w/Pad
• Solar-Ray Deep Tinted Glass
• Front License Plate Bracket
• Engine Block Heater
• Heavy-Duty Power Package
• Skid Plate Package
• HD Handling/Trailering Suspension Package
• Heavy-Duty Trailering Equipment
• Trailering Hitch Platform
• External Transmission Oil Cooler
• Dual Heavy-Duty 770 CCA Batteries

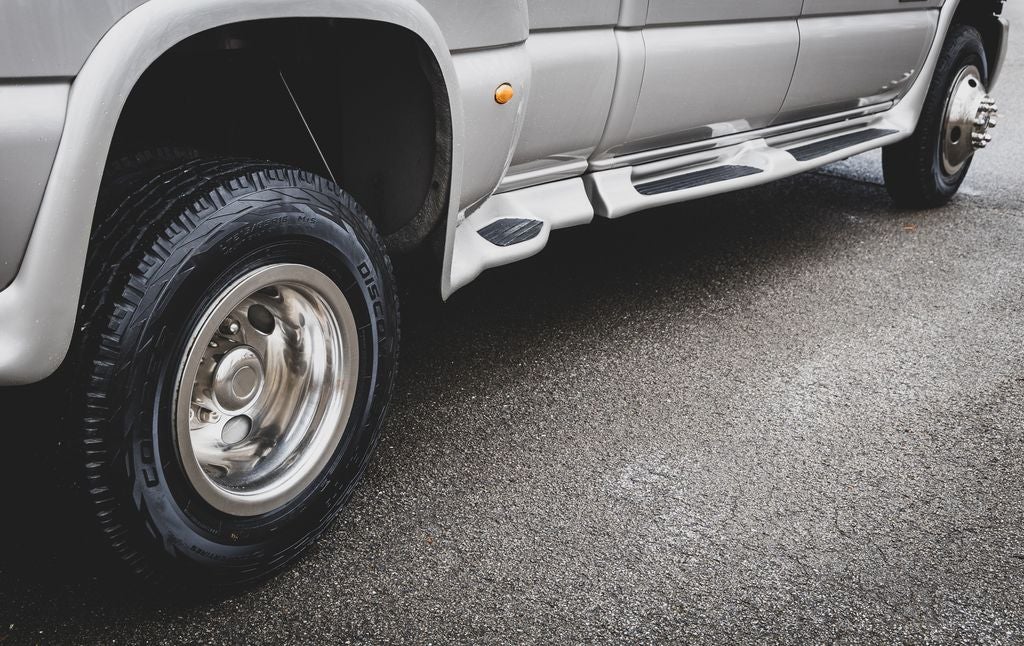

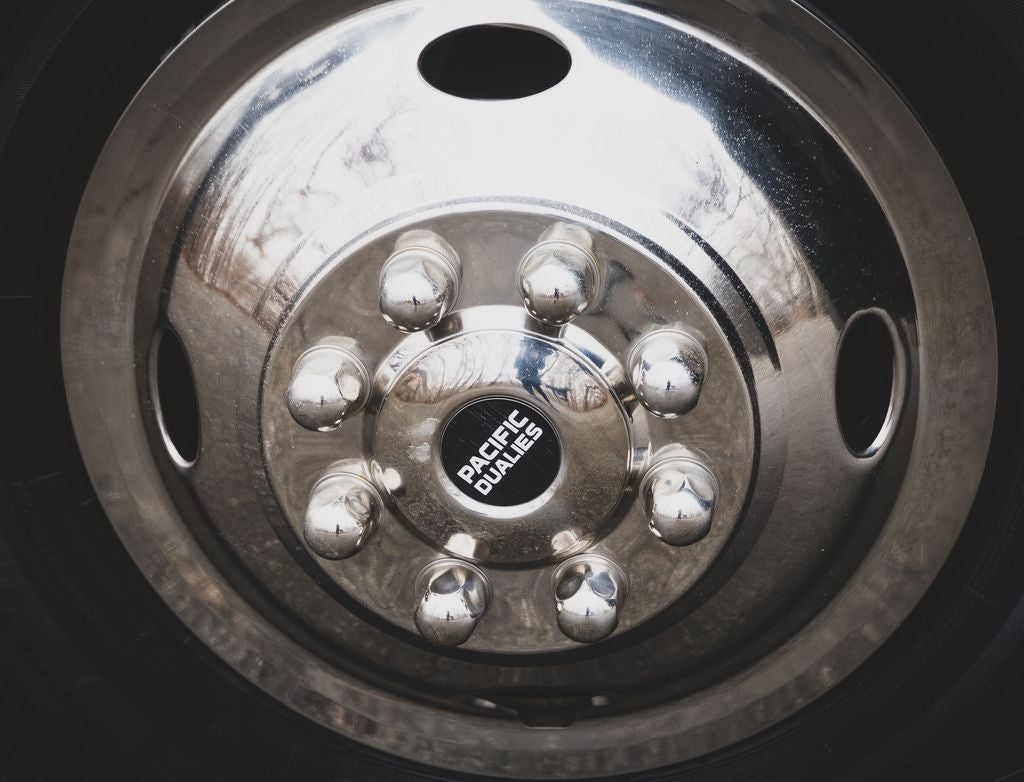

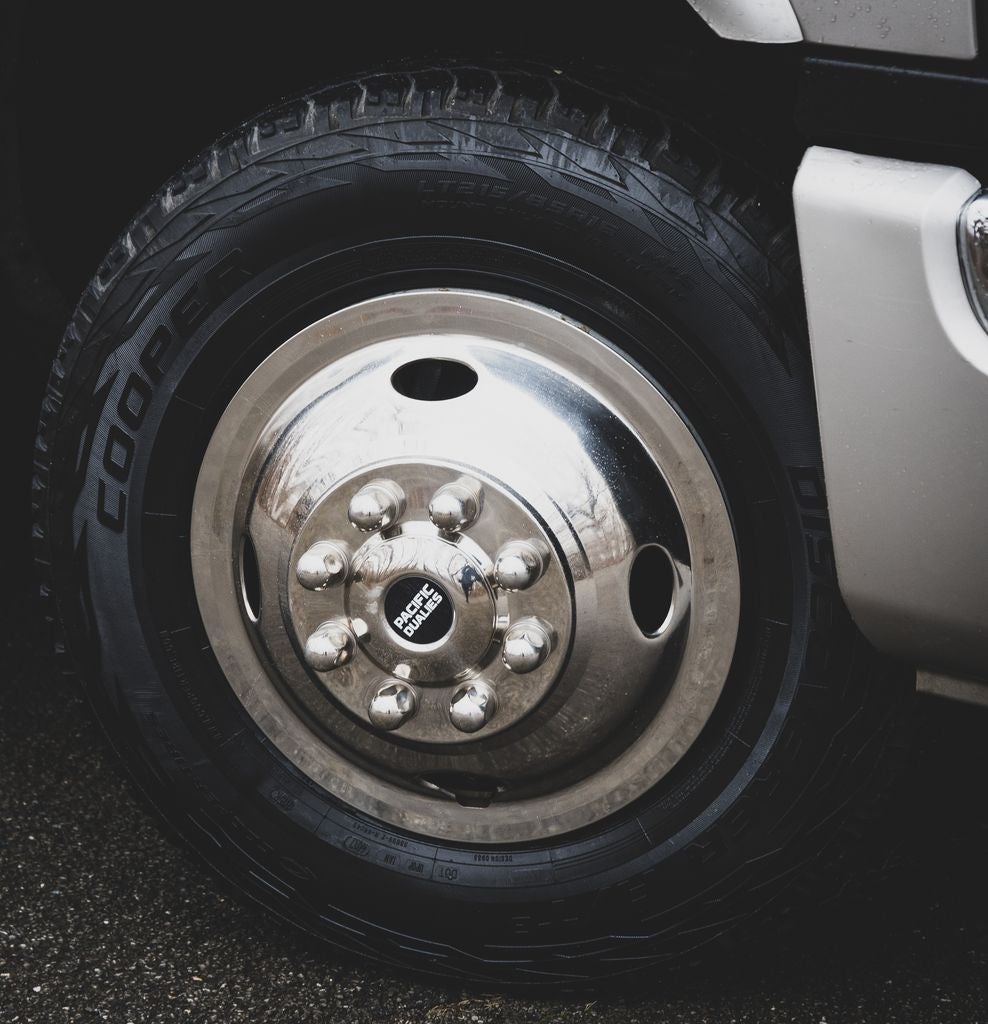

• Dual rear wheels
• Front beverage holders
• Variably intermittent wipers
• Tilt steering wheel
• Split folding rear seat
• Rear step bumper
• Rear seat center armrest
• Power steering
• Passenger vanity mirror
• Passenger door bin
• Fully automatic headlights
• Front wheel independent suspension
• Front dual zone A/C
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Bumpers: chrome
• AM/FM radio
• ABS brakes
• Voltmeter

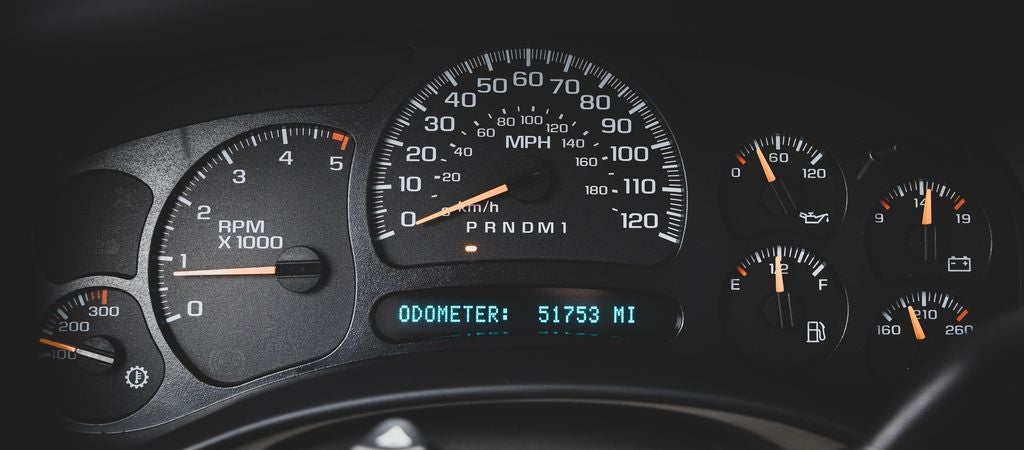

• Tachometer
• Air Conditioning
• 4-Wheel Disc Brakes

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Cold Cranking Amps @ 0° F (Primary): 600
• Cold Cranking Amps @ 0° F (2nd): 770
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Capacity (amps): 105
• Cooling System
• Total Cooling System Capacity (qts): 16.2
• Total Cooling System Capacity (qts): 16.0
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 8550
• Curb Weight - Front (lbs): 3475
• Curb Weight - Rear (lbs): 2901
• Gross Vehicle Weight Rating Cap (lbs): 11400
• Gross Combined Wt Rating (lbs): 23500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9200
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1380
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 16000
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9200
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4000
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2300
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: 3-Stage Springs
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 6084
• Axle Type - Front: Independent
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9200
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.25
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.8 x 1.5
• Rear Brake Rotor Diam x Thickness (in): 12.8 x 1.2

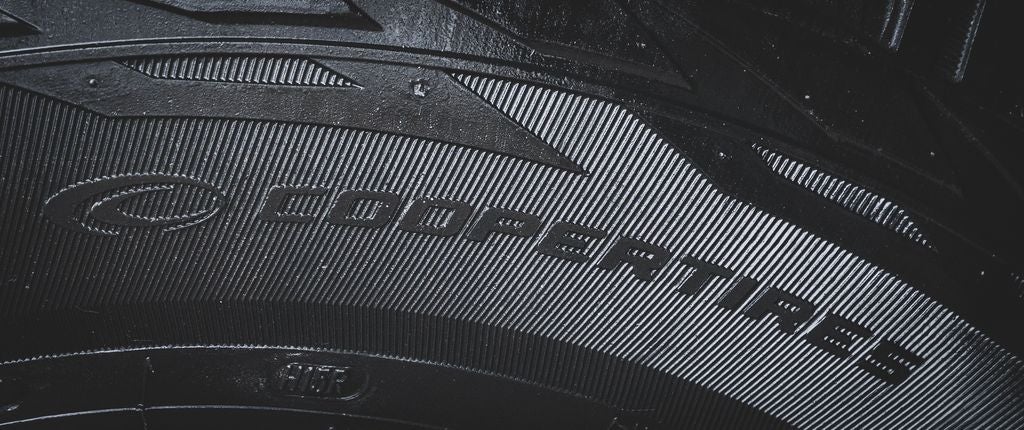

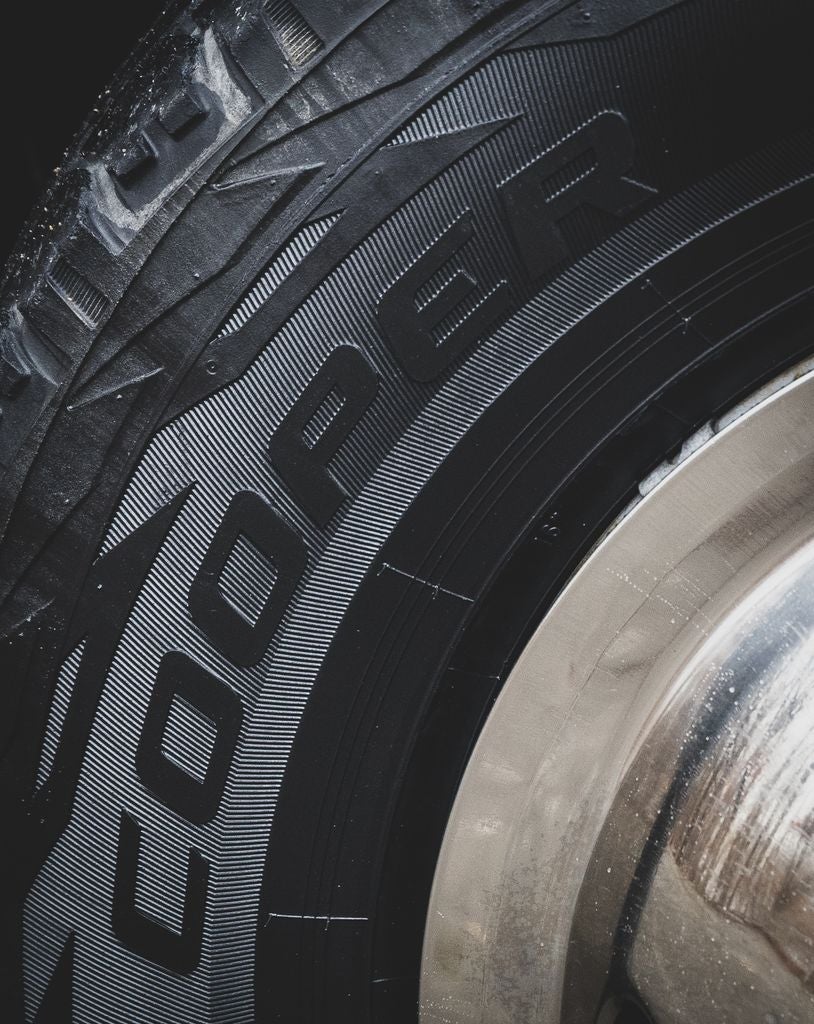

• Tires
• Front Tire Order Code: XEC
• Rear Tire Order Code: XEC
• Spare Tire Order Code: XEC
• Front Tire Size: LT215/85R16
• Rear Tire Size: LT215/85R16
• Spare Tire Size: LT215/85R16
• Front Tire Capacity (lbs): 2430
• Rear Tire Capacity (lbs): 2150
• Spare Tire Capacity (lbs): 2430
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -

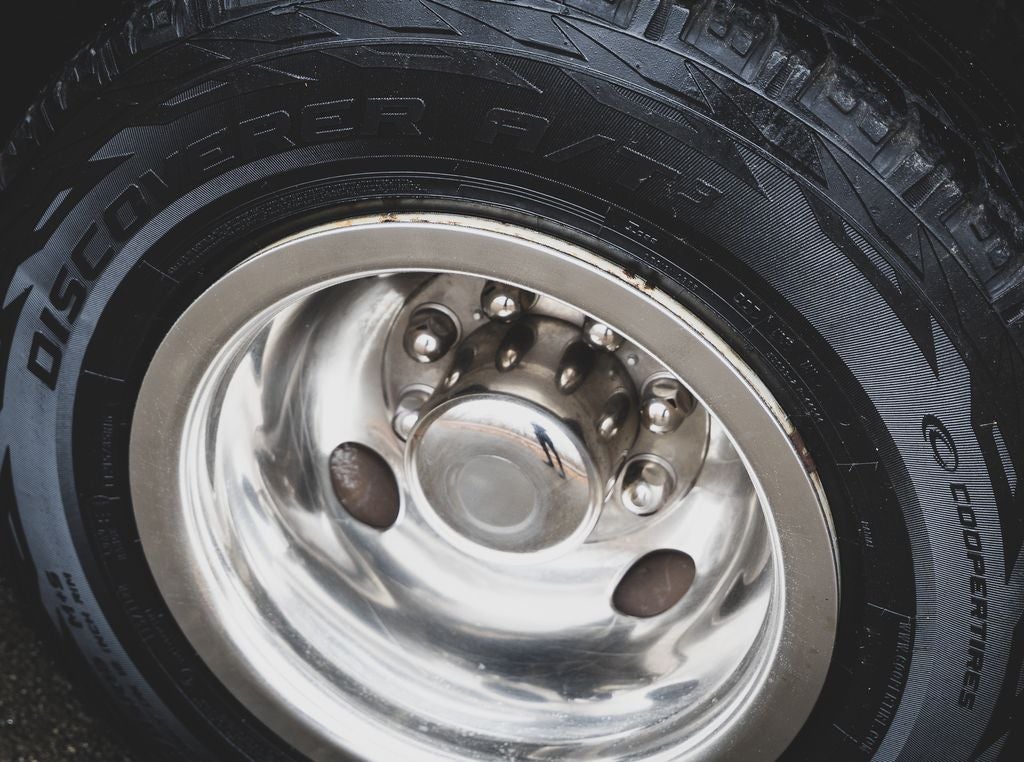

• Wheels

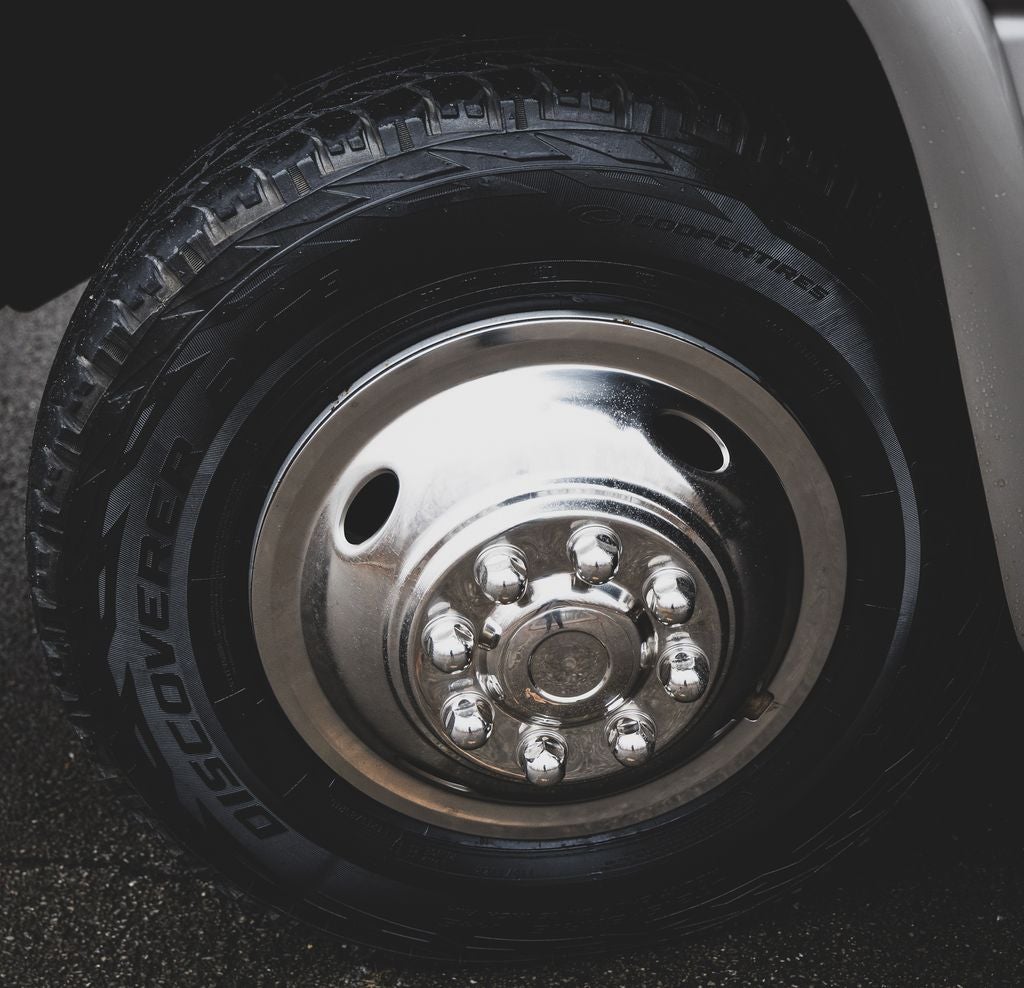

• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 55.5
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 34
• Fuel Tank Location: LH
• Exterior Dimensions
• Wheelbase (in): 167.0
• Length, Overall w/o rear bumper (in): 258.5
• Width, Max w/o mirrors (in): 96.1
• Height, Overall (in): 77.3
• Overhang, Front (in): 37.0
• Overhang, Rear w/o bumper (in): 52.2
• Front Bumper to Back of Cab (in): 148.1
• Cab to Axle (in): 55.9
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 34.4
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 10.6
• Ground Clearance, Rear (in): 13.6
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.6
• Cargo Box Width @ Top, Rear (in): 61.9
• Cargo Box Width @ Floor (in): 64.8
• Cargo Box Width @ Wheelhousings (in): 50.0
• Cargo Box (Area) Height (in): 19.5
• Tailgate Width (in): 61.9
• Cargo Volume (ft³): 73.9
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 5
• Front Head Room (in): 41.0
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 61.4
• Second Head Room (in): 39.0
• Second Leg Room (in): 39.1
• Second Shoulder Room (in): 65.1
• Second Hip Room (in): 62.9
• Summary

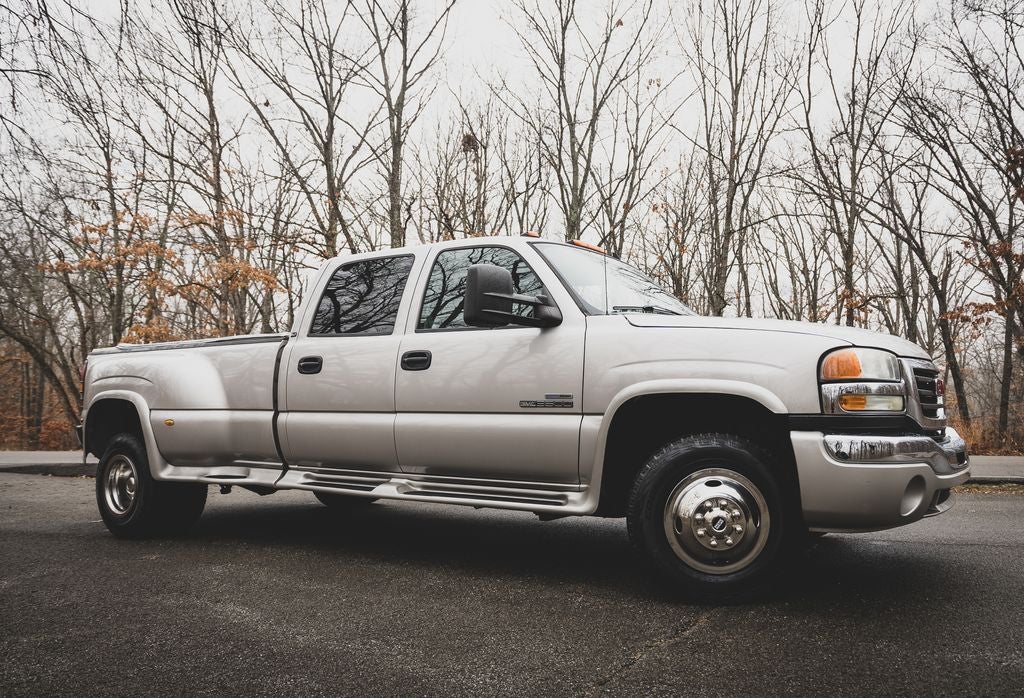

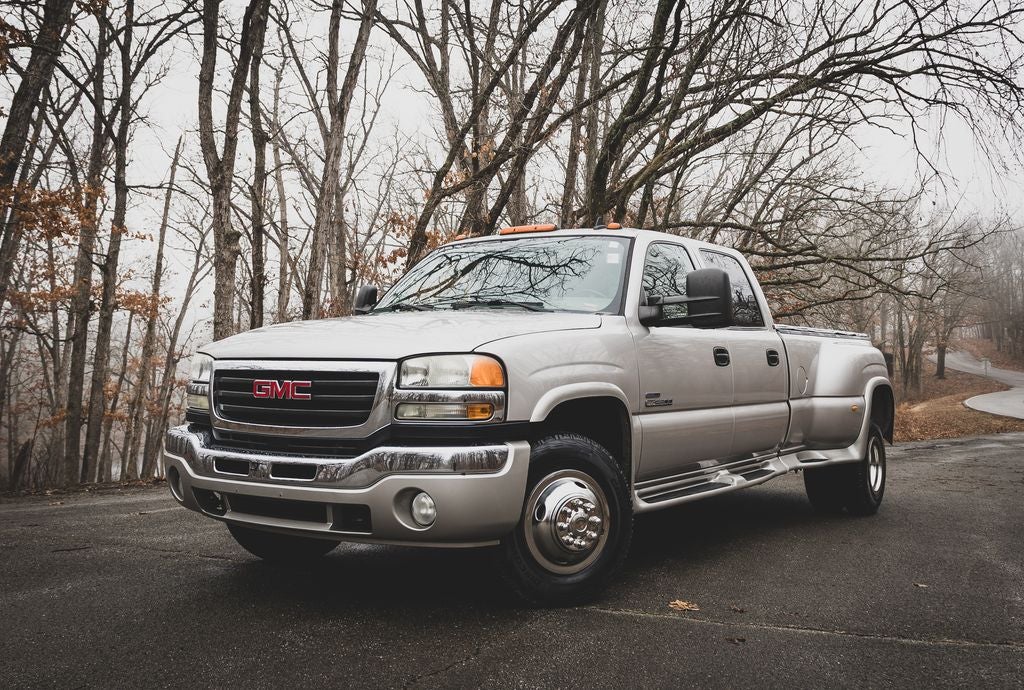

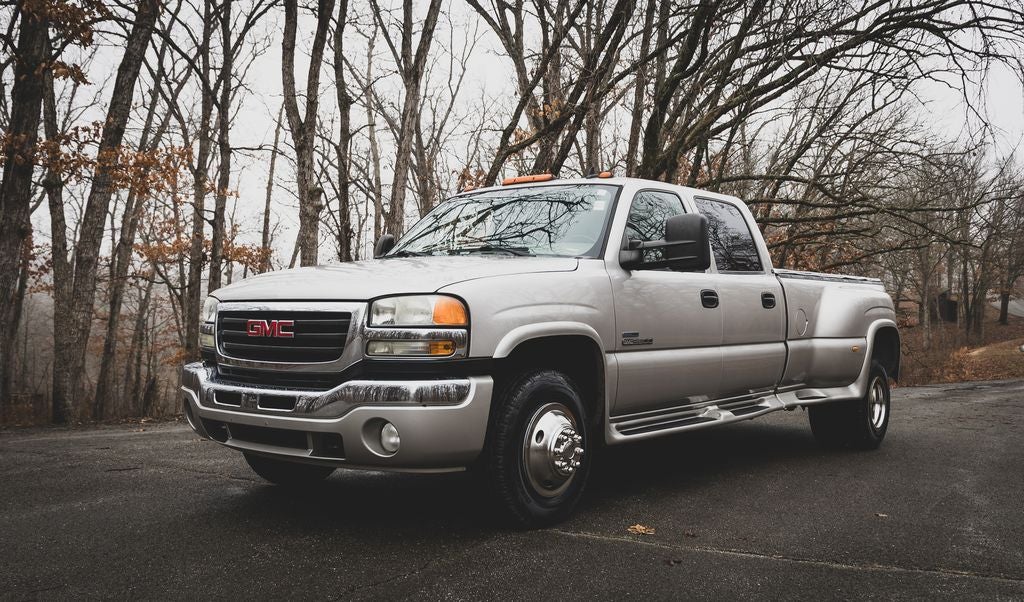

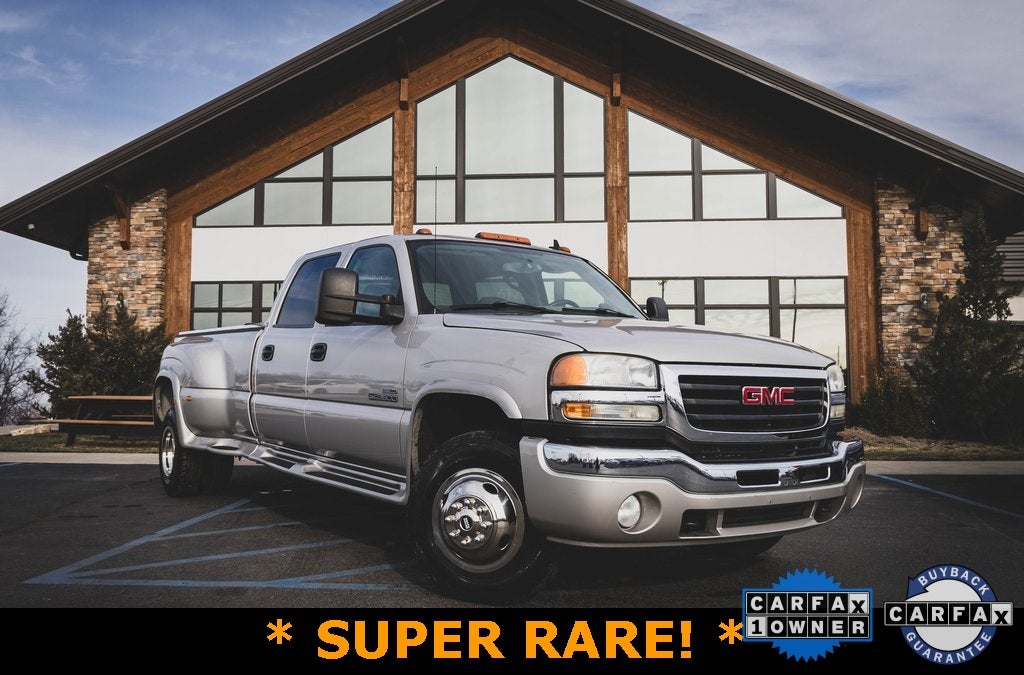

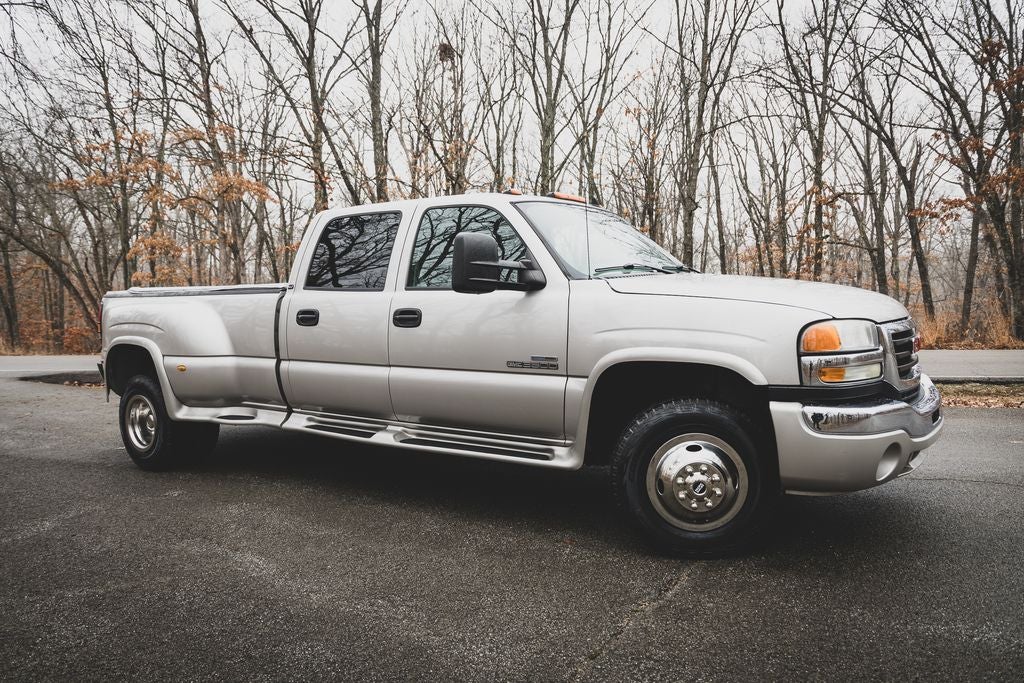

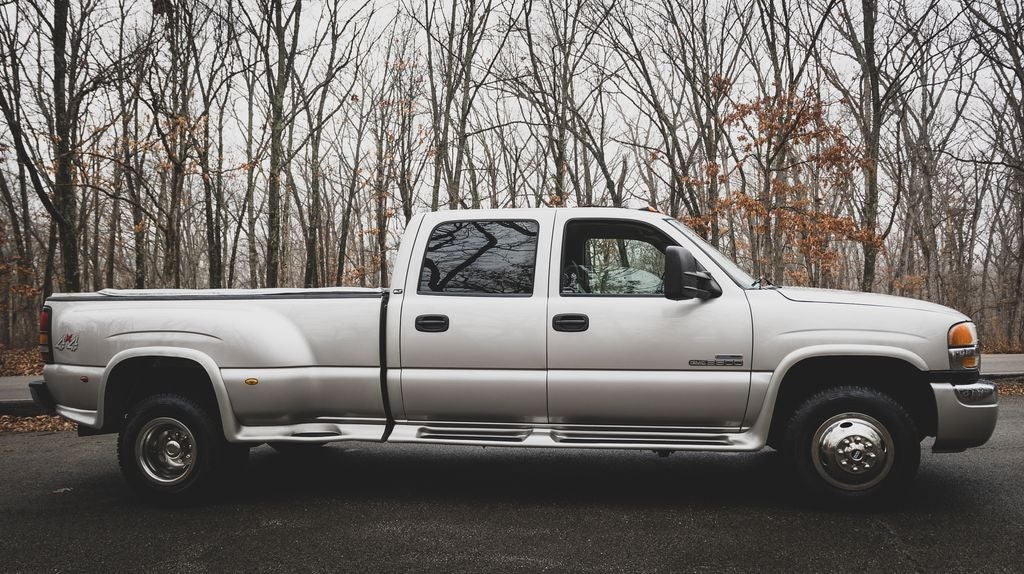

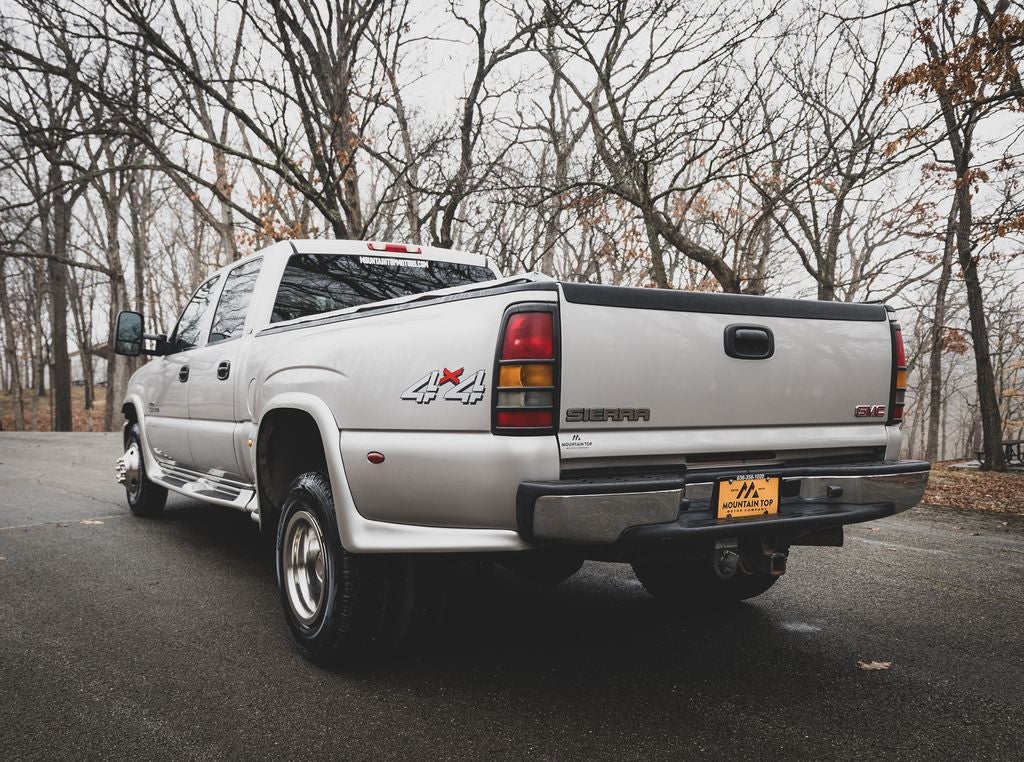

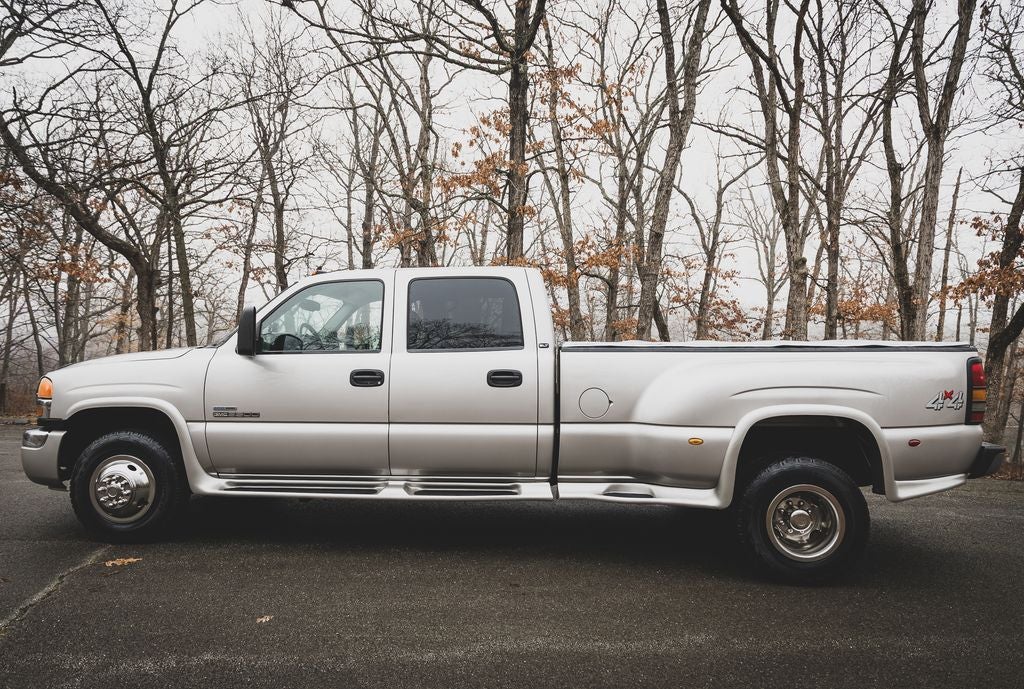

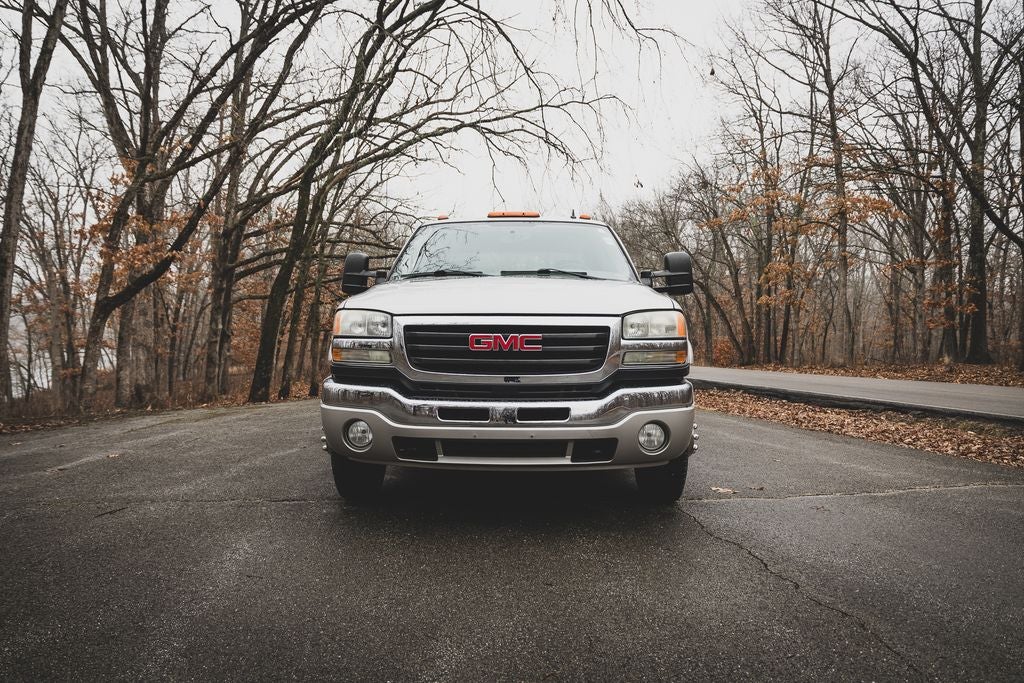

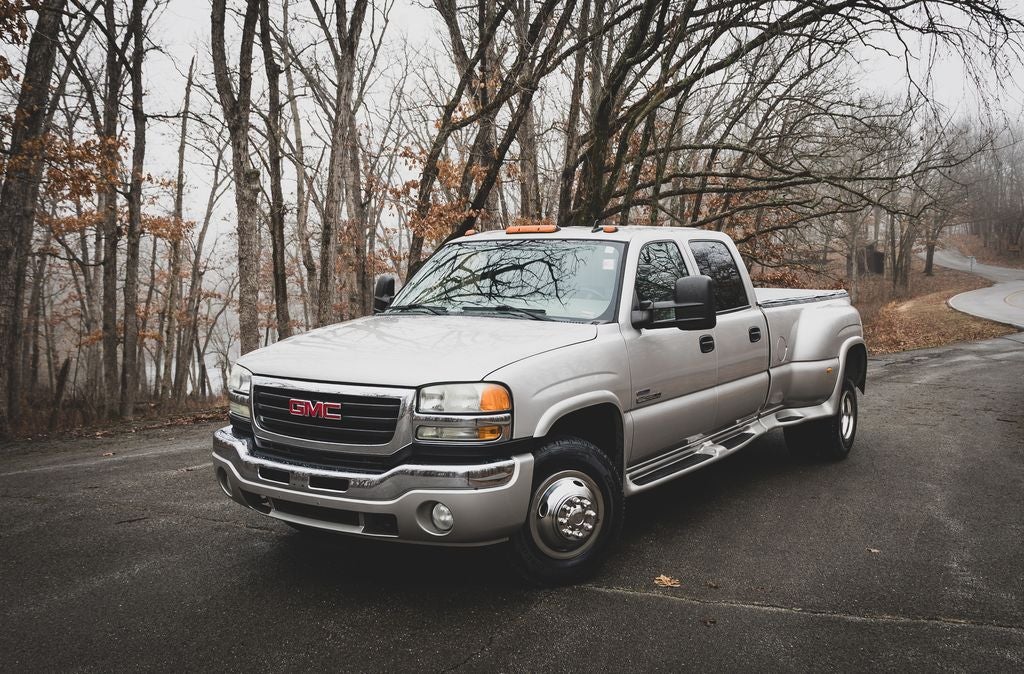

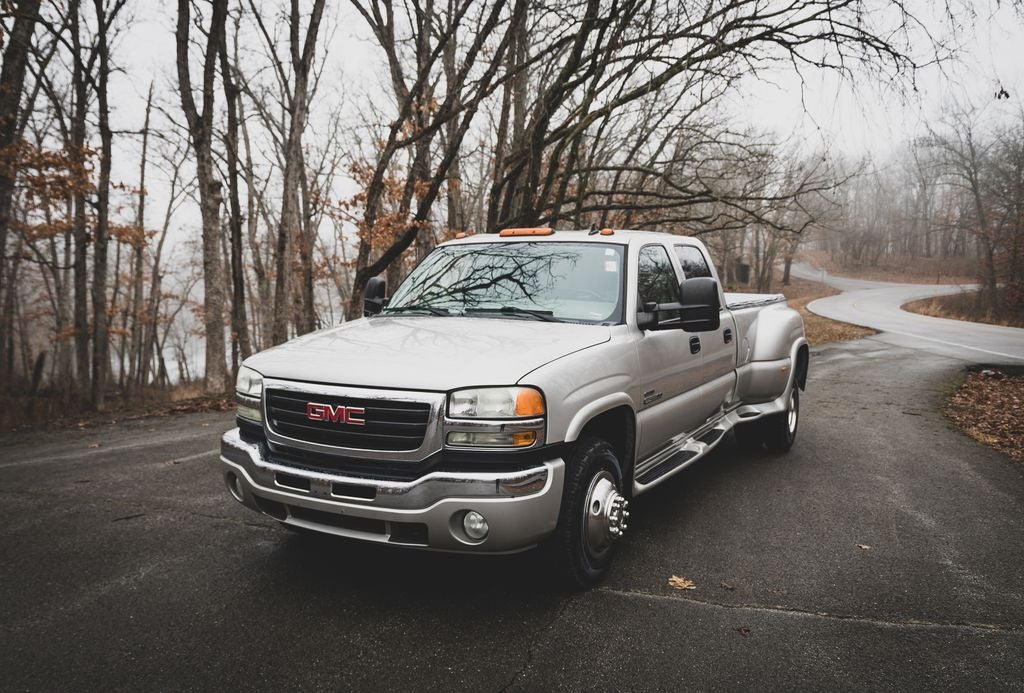

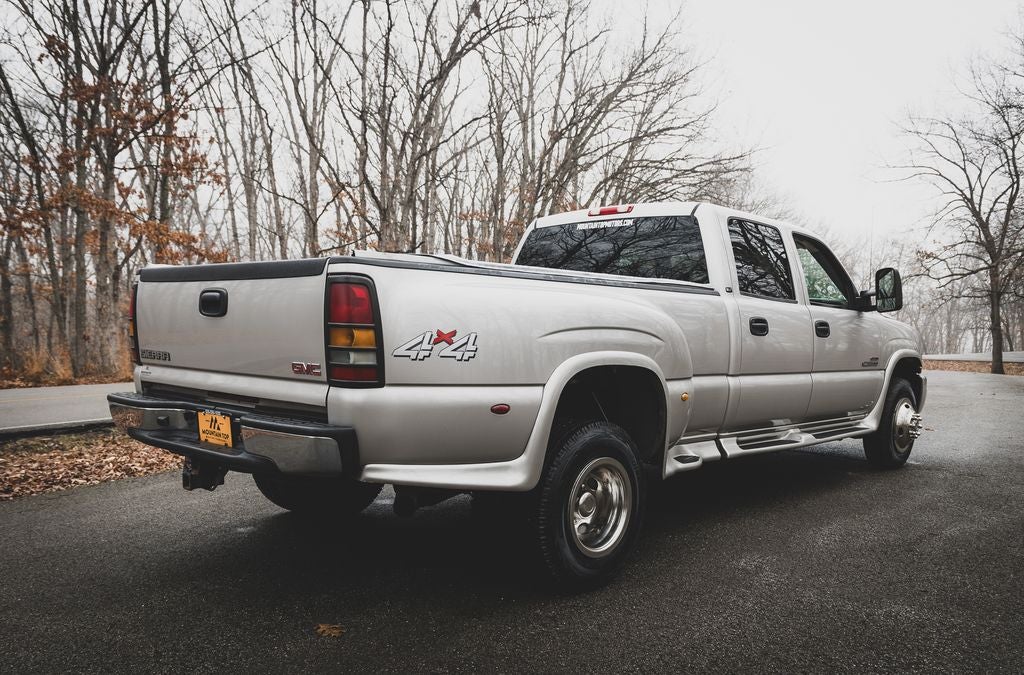

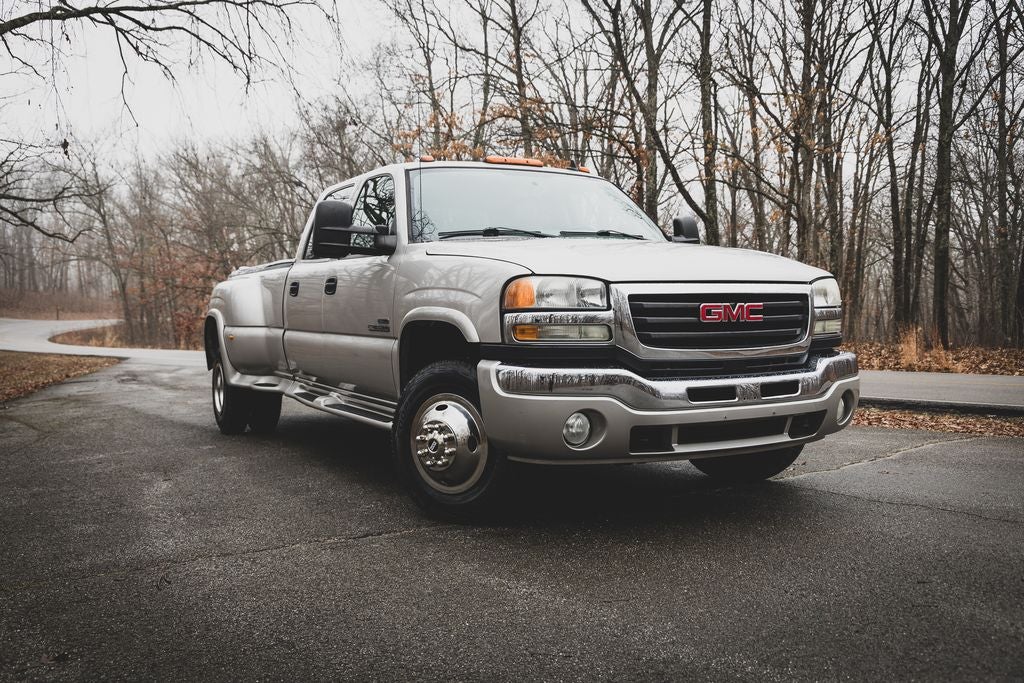

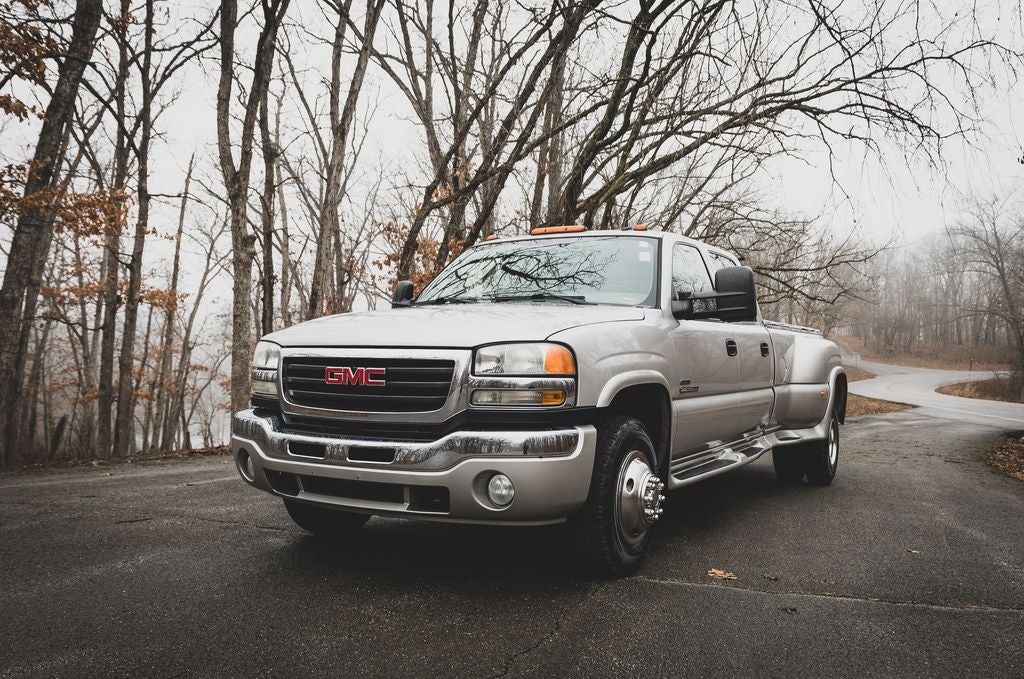

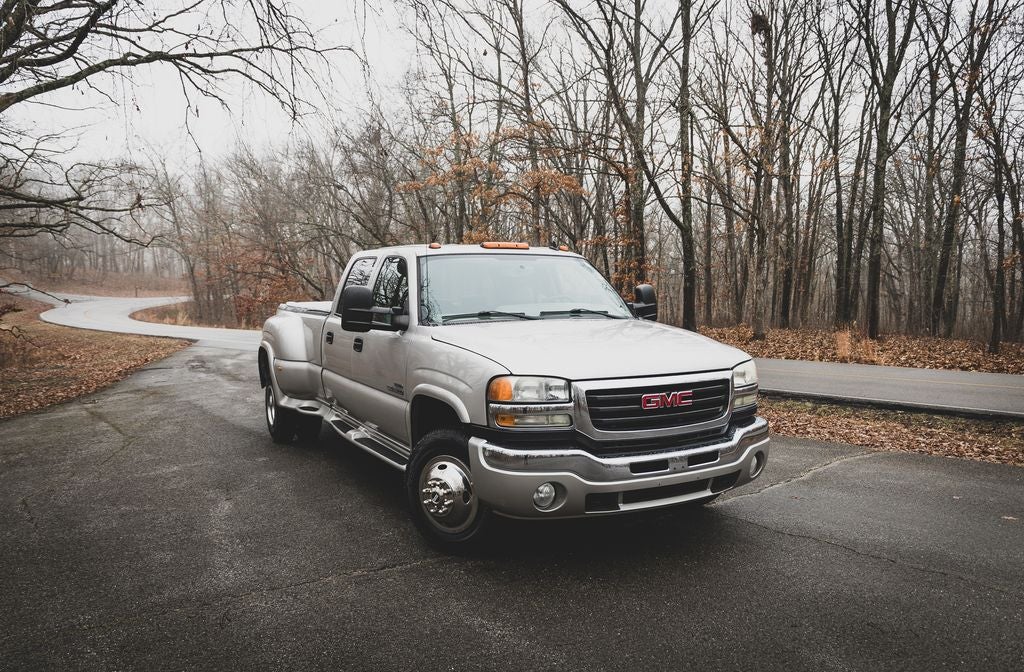

• Vehicle Name: GMC Sierra 3500 Classic
• Body Style: Crew Cab 8' Wideside
• Body Code: E63
